Availability: | |
---|---|
| |

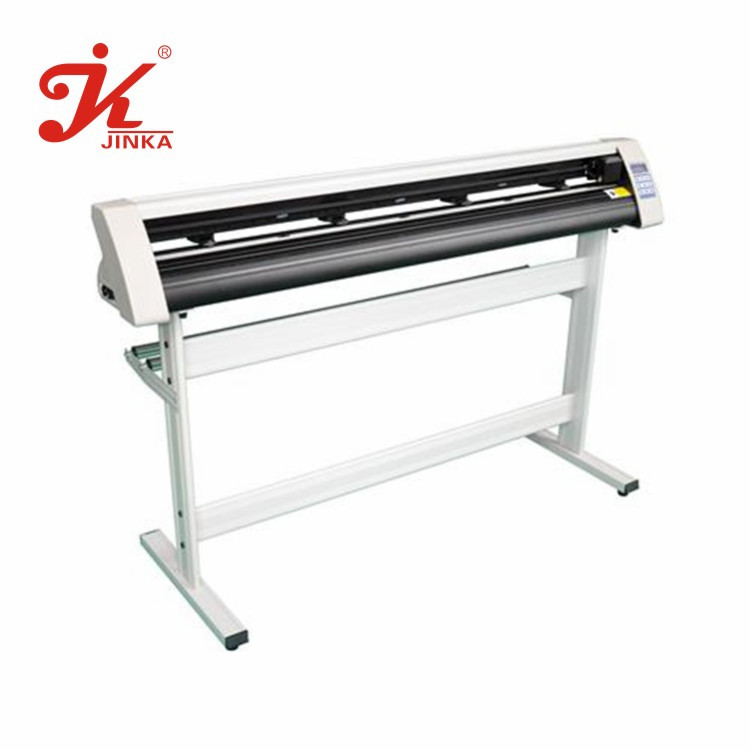

1351PE
Jinka
1351PE
Model | 1351PE |
Main board | 32-bit CPU, 1Mb / 4Mb cache memory |
Control panel | 2*8LCD, 9-botton physical keyboard |
Driver | Stepprt motor |
Max paper feed width | 1350mm |
Max cutting width | 1210mm |
Max cutting speed | 800mm/s |
Max cutting thickness | 1mm |
Knife press | 10-500g( digital adjustment) |
Mechanical resolution | 0.0254mm/step |
Repeatability | 0.127mm |
Type of tool | Cemented carbide blade |
Plotting pen type | all types diameter 11.4mm plotter pen |
Plotting instruction | DMPL / HPGL automatic identification |
Interface | COM + USB |
Power supply | Switching power supply, AC85V-AC264V 50HZ |
Operating enviroment | Temperature:+5℃ to +35℃, relative temperature 30%-70% |
Operating language | English |
Operatin system | Windows XP,Vista,Windows7/Windows8/Windows10 |
Stand | Iron alloy stand |
Warranty | 12 months |
The PE series cutting plotter brings to the customer good quality and cost-effectiveness machines. The business owner can
start their business at a small cost.
High speed stepper motor with low nosie
Real-time adjusting cutting speed and cutting force
High-quality aluminum alloy structure to ensure a long service life
The optical eye is optional which support to do semi-auto contour cutting
1351PE cutter * 1 unit
Standard cemented carbide blade * 1 box
Blade holder * 1 pc
Pen holder * 1 pc
Drive CD * 1 pc
1.5m USB cable * 1 pc
1.8m COM cable * 1 pc
Power cord * 1 pc
Stand * 1 set
Model | 1351PE |
Main board | 32-bit CPU, 1Mb / 4Mb cache memory |
Control panel | 2*8LCD, 9-botton physical keyboard |
Driver | Stepprt motor |
Max paper feed width | 1350mm |
Max cutting width | 1210mm |
Max cutting speed | 800mm/s |
Max cutting thickness | 1mm |
Knife press | 10-500g( digital adjustment) |
Mechanical resolution | 0.0254mm/step |
Repeatability | 0.127mm |
Type of tool | Cemented carbide blade |
Plotting pen type | all types diameter 11.4mm plotter pen |
Plotting instruction | DMPL / HPGL automatic identification |
Interface | COM + USB |
Power supply | Switching power supply, AC85V-AC264V 50HZ |
Operating enviroment | Temperature:+5℃ to +35℃, relative temperature 30%-70% |
Operating language | English |
Operatin system | Windows XP,Vista,Windows7/Windows8/Windows10 |
Stand | Iron alloy stand |
Warranty | 12 months |
The PE series cutting plotter brings to the customer good quality and cost-effectiveness machines. The business owner can
start their business at a small cost.
High speed stepper motor with low nosie
Real-time adjusting cutting speed and cutting force
High-quality aluminum alloy structure to ensure a long service life
The optical eye is optional which support to do semi-auto contour cutting
1351PE cutter * 1 unit
Standard cemented carbide blade * 1 box
Blade holder * 1 pc
Pen holder * 1 pc
Drive CD * 1 pc
1.5m USB cable * 1 pc
1.8m COM cable * 1 pc
Power cord * 1 pc
Stand * 1 set
