RELATED PRODUCTS

721XE Cutting Plotter

Model: 721XE Media Width: 720mm Cutting Width: 6110mm
Max.Cutting Speed: 800mm/s Max Cutting Force: 500g
Media type: Up to 1mm thick self-adhesive film
Warranty" 12 months

  • 721XE
  • Jinka
  • 721XE

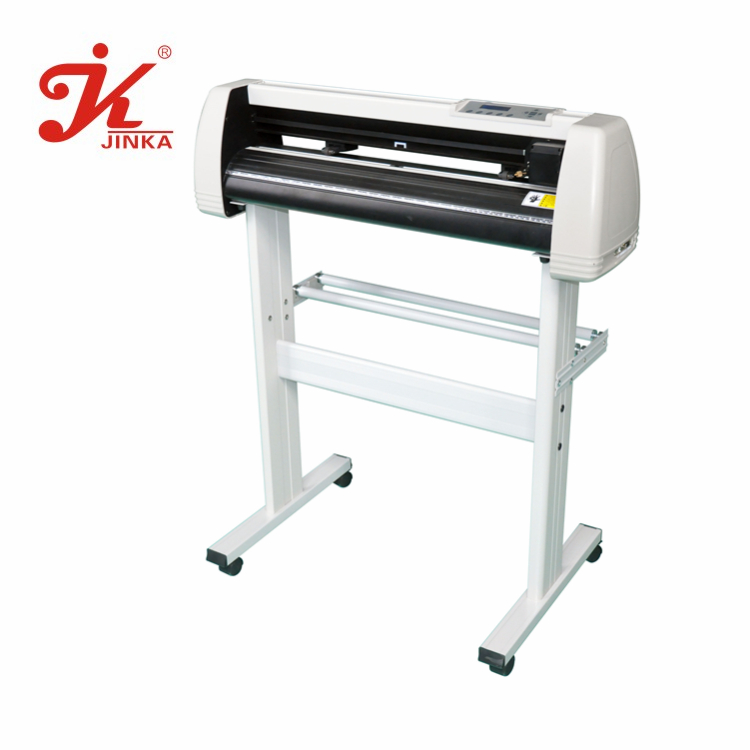

Product Picture


JK721XE-黑-2


JK721XE-灰-2


Product Parameter


Model 721XE
Main board 32-bit CPU, 1Mb / 4Mb cache memory
Control panel 2*8LCD, 9-botton physical keyboard
Driver Stepprt motor
Max paper feed width 720mm
Max cutting width 610mm
Max cutting speed 800mm/s
Max cutting thickness 1mm
Knife press 10-500g( digital adjustment)
Mechanical resolution 0.0254mm/step
Repeatability 0.127mm
Type of tool Cemented carbide blade
Plotting pen type all types diameter 11.4mm plotter pen
Plotting instruction DMPL / HPGL automatic identification
Interface COM + USB
Power supply Switching power supply, AC85V-AC264V 50HZ
Operating enviroment Temperature:+5℃ to +35℃, relative temperature 30%-70%
Operating language English
Operatin system Windows XP,Vista,Windows7/Windows8/Windows10
Stand Iron alloy stand
Warranty 12 months


Product desription

The XE series cutting plotter brings to the customer high cutting quality and cost-effectiveness machines. The business owner can start their business at a small cost.

  • High speed stepper motor with low nosie

  • Real-time adjusting cutting speed and cutting force

  • High-quality aluminum alloy structure to ensure a long service life

  • The optical eye is optional which support to do semi-auto contour cutting


Whats Included

  • 721XE cutter * 1 unit

  • Standard cemented carbide blade * 1 box

  • Blade holder * 1 pc

  • Pen holder * 1 pc

  • Drive CD * 1 pc

  • 1.8m USB cable * 1 pc

  • 2.5m COM cable * 1 pc

  • Power cord * 1 pc

  • Stand * 1 set
