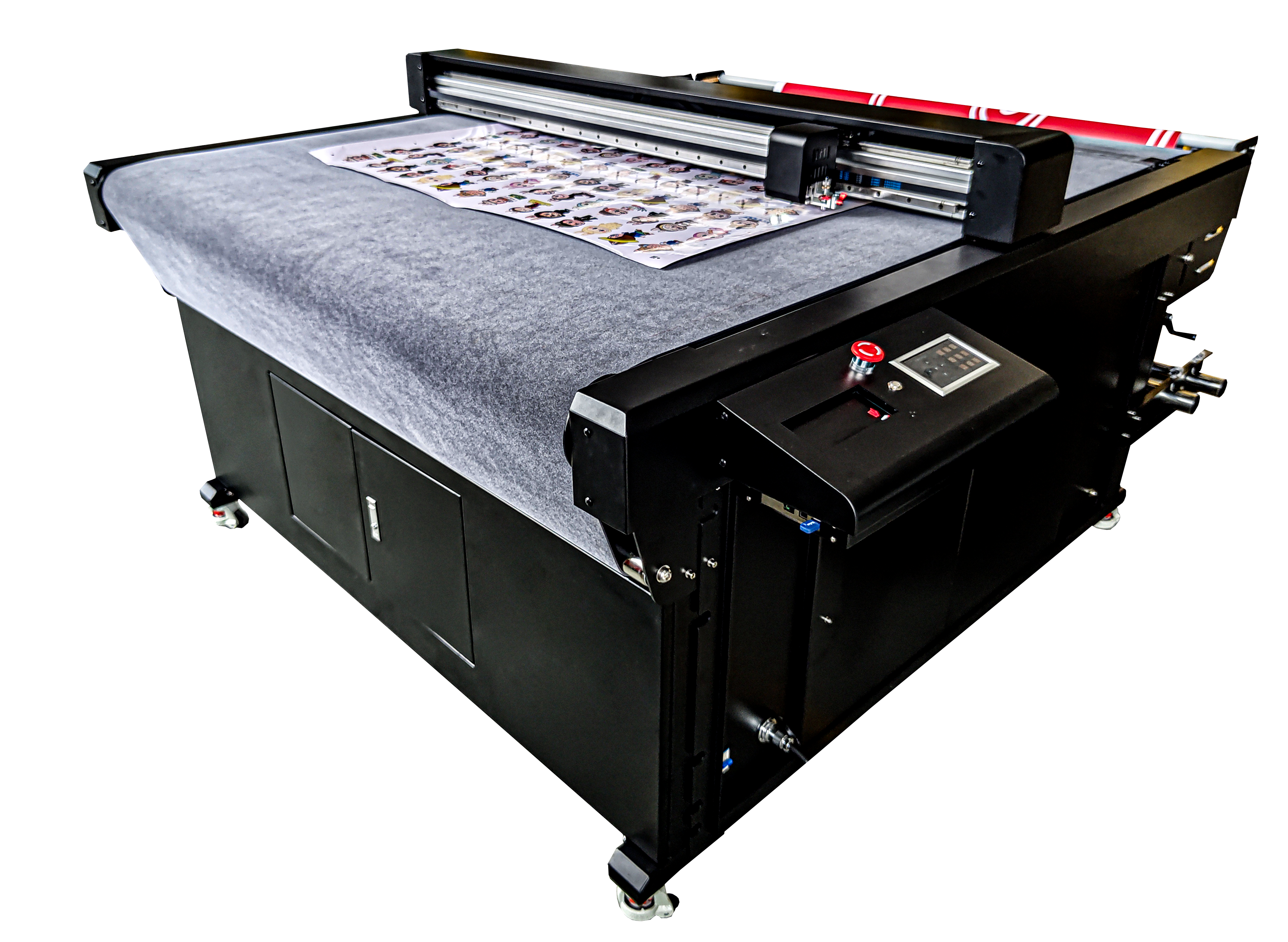

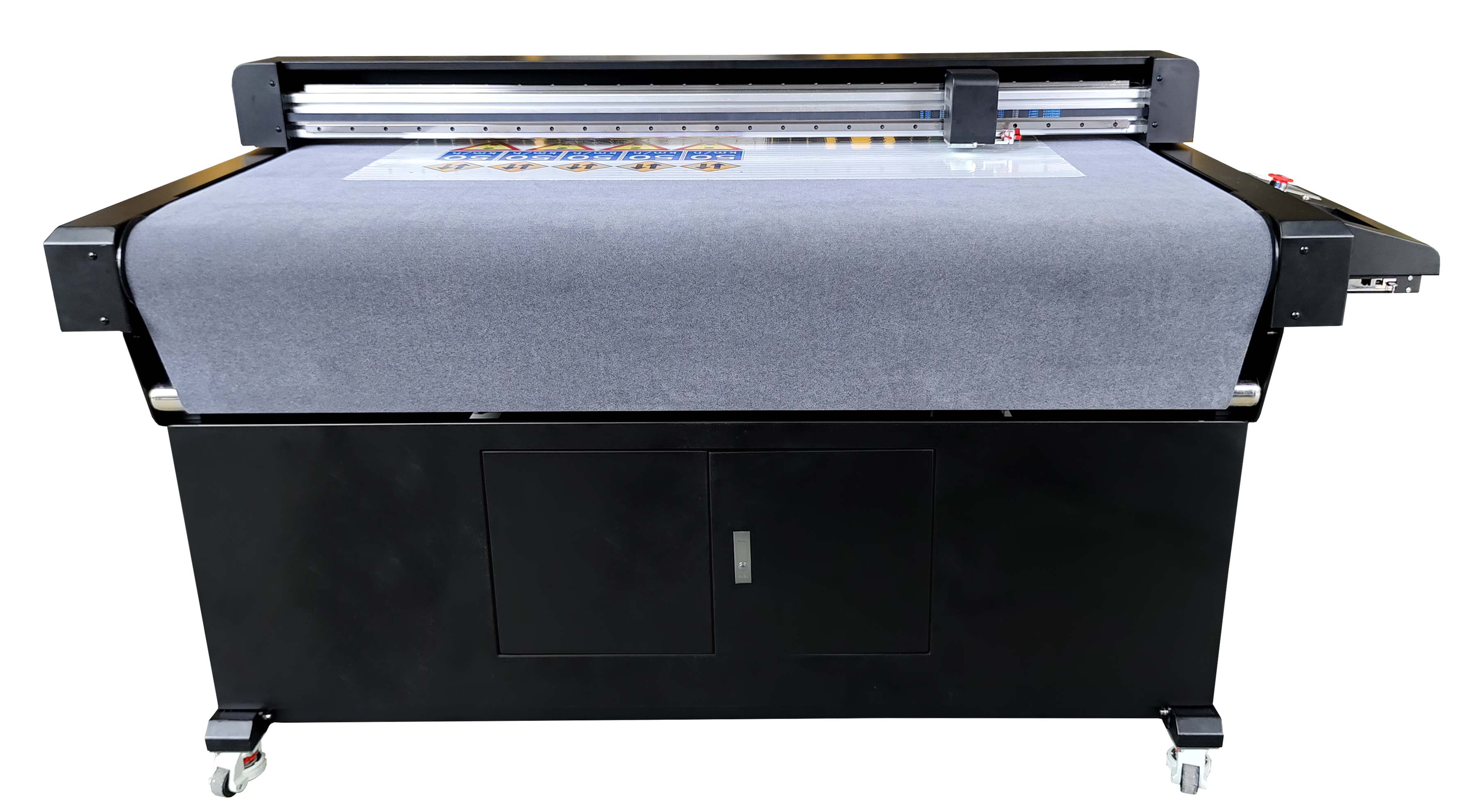

Flatbed cutter

Availability:

  • JKW Series

  • kaxing

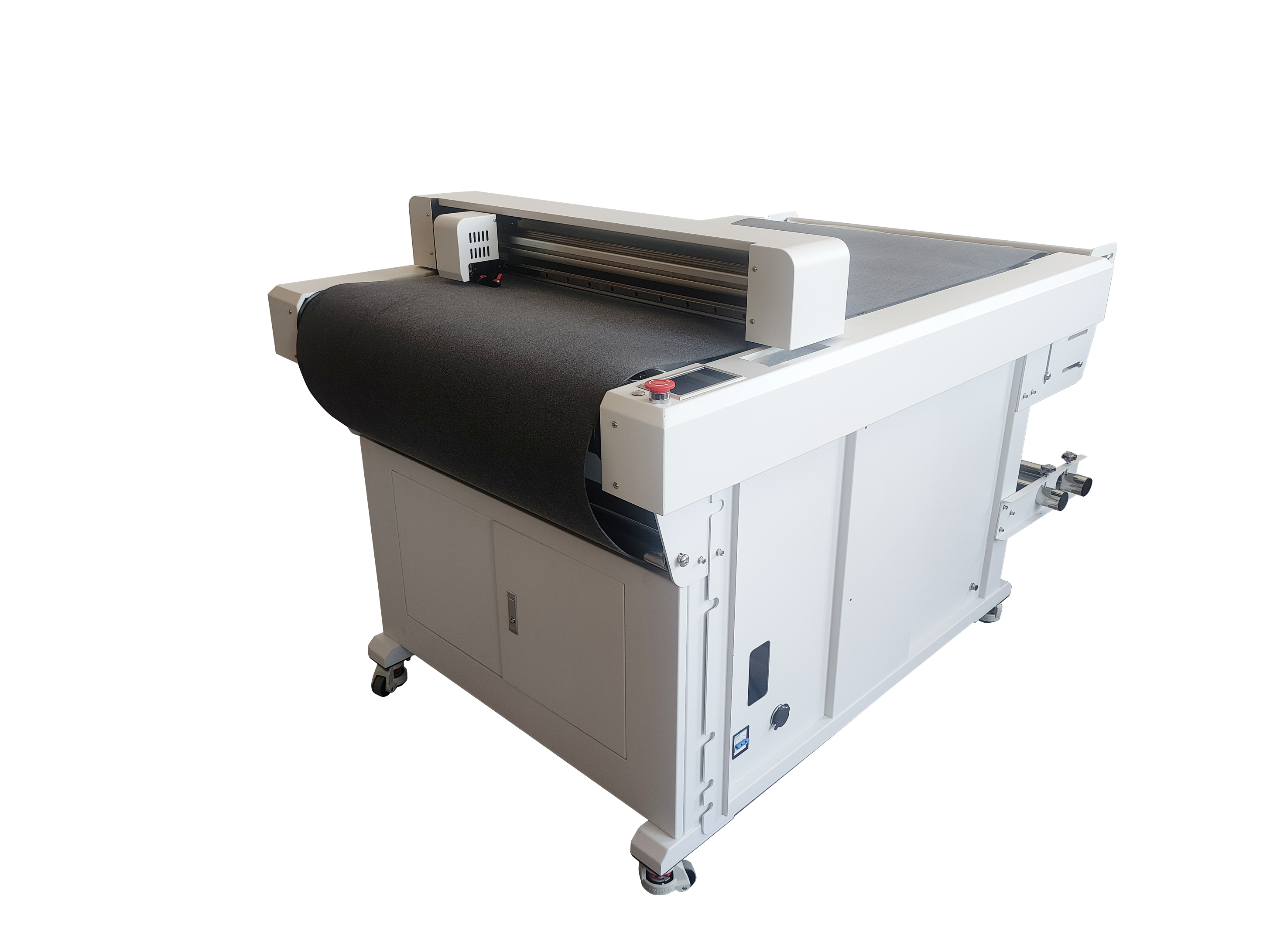

bbbb

Product Description

  • Dual Blade (Full cut+Half cut,Full cut+ceasing)

  • Rolling feed cut machine

  • Vacuum working table

  • High Precision Camera Position

  • High Speed Servo Motor

  • PVC,Magnet,Car Decal,Car PPF Cutter


    P roduct Paramenters

型号 Modle JKW6090 JKW1313 JKW1605 JKW1613
机器尺寸Machine size 180*111*112CM 208*190*112CM 130*220*112CM 208*220*112CM
工作尺寸Working size 60*90CM 130*130CM 160*50CM 160*130CM
切割速度Cutting Speed 5-1000mm/s

最大刀压

Max.cutting force

 1000g

最大切割厚度

Vaxcutting thickness

 1.2mm
主板 Main board 伺服CCD主板ARMS mainboard
小车Carrige CCD双刀头小车 CCD double heads carriage
内存Memory 16M
通讯端口Interface USB+U DISK+TCP
操作软件Software AIDCUT(CDR,AI)、jinkacut(Signmaster)、Sign cut
显示Display 4.3寸触摸屏/4.3Inch Touch Screen
定位方式Positioning way CCD
语言格式Command set HPGL
驱动电机Motor 伺服系统 Servo motor

工作电压频率

Work valtage

 AC100V-220V/50-60HZ/10A
工作台面 Work table 真空吸附Vaccum flat
包装尺寸/毛重packingsize/Grossweight 180*111*128CM/280kg 220*181*128CM/485kg 140*211*128CM/370kg 220*211*128CM/555kg
