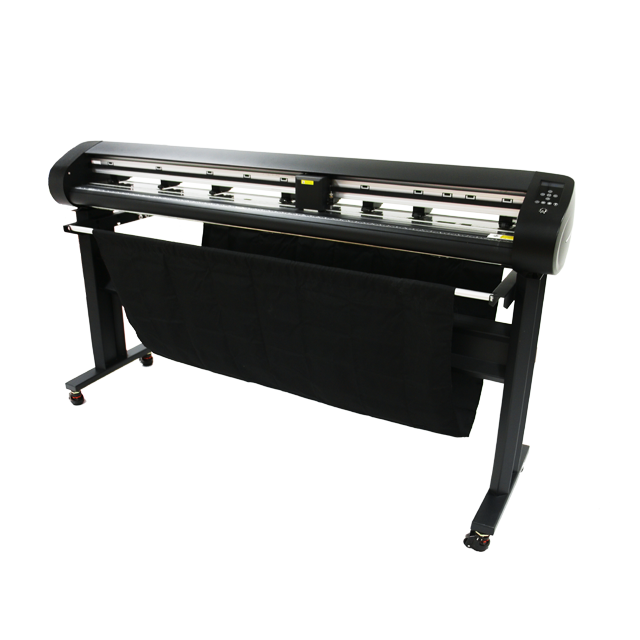

3M reflective film and car film M1600 servo motor auto cutter


Product Description

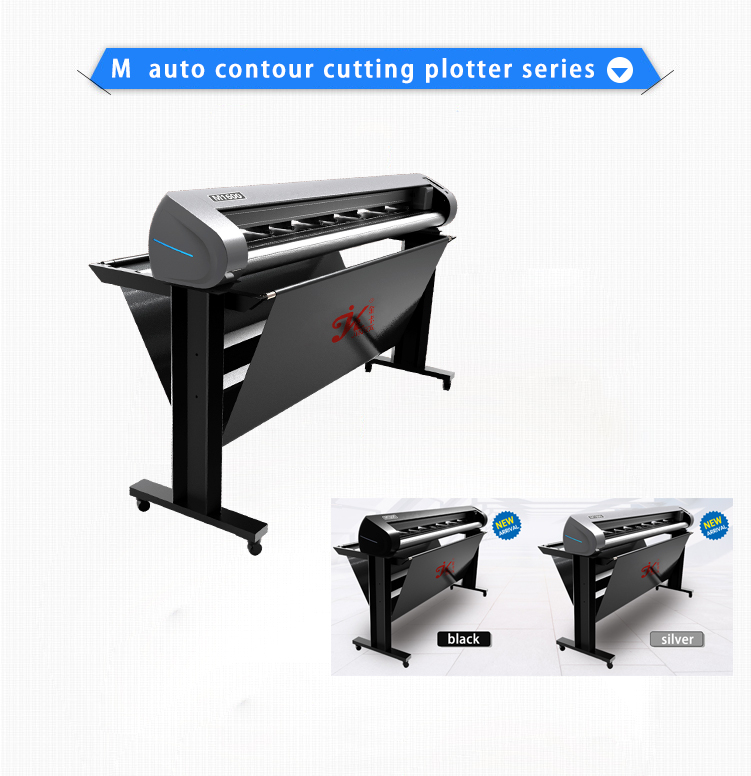

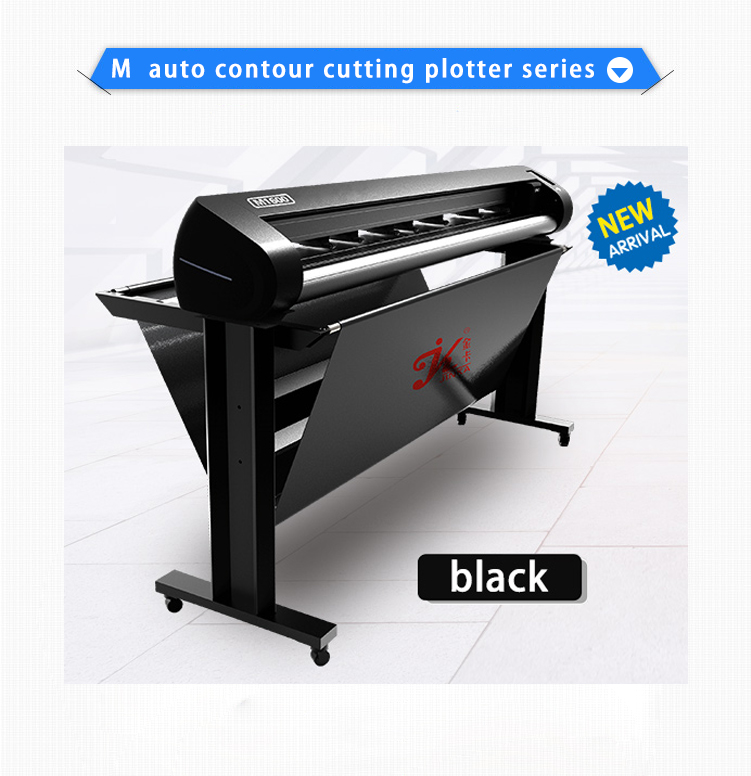

M机器黑色M1600-15 电动支架M1600-12 电动支架M1600-16 普通支架

Product Patamenters


Modle M1400 M1600 M1800
Max.material width 1430mm 1680mm 1840mm
Max.cutting width 1300mm 1550mm 1710mm
Pinch roller 6 8 10
Main board CCD  ARMS mainboard
Carrige Aluminum casting carriage with camera

Contour cutting type
Auto contour
Cutting precision

Feeding accuracy

Drive motor
Servo motor
 stand  Special Stand/auto feeding Stand
Speed 1200mm/s
Force 800g
Roller Grit roller
Interface USB+U-disk+TCP
Command HPGL
Input voltage 100-120V/200-240V

1870*420*520mm 2125*475*520mm 2280*410*560mm
 Operating system WindowsXP/Windows7/Windows8/Windows10/MAC

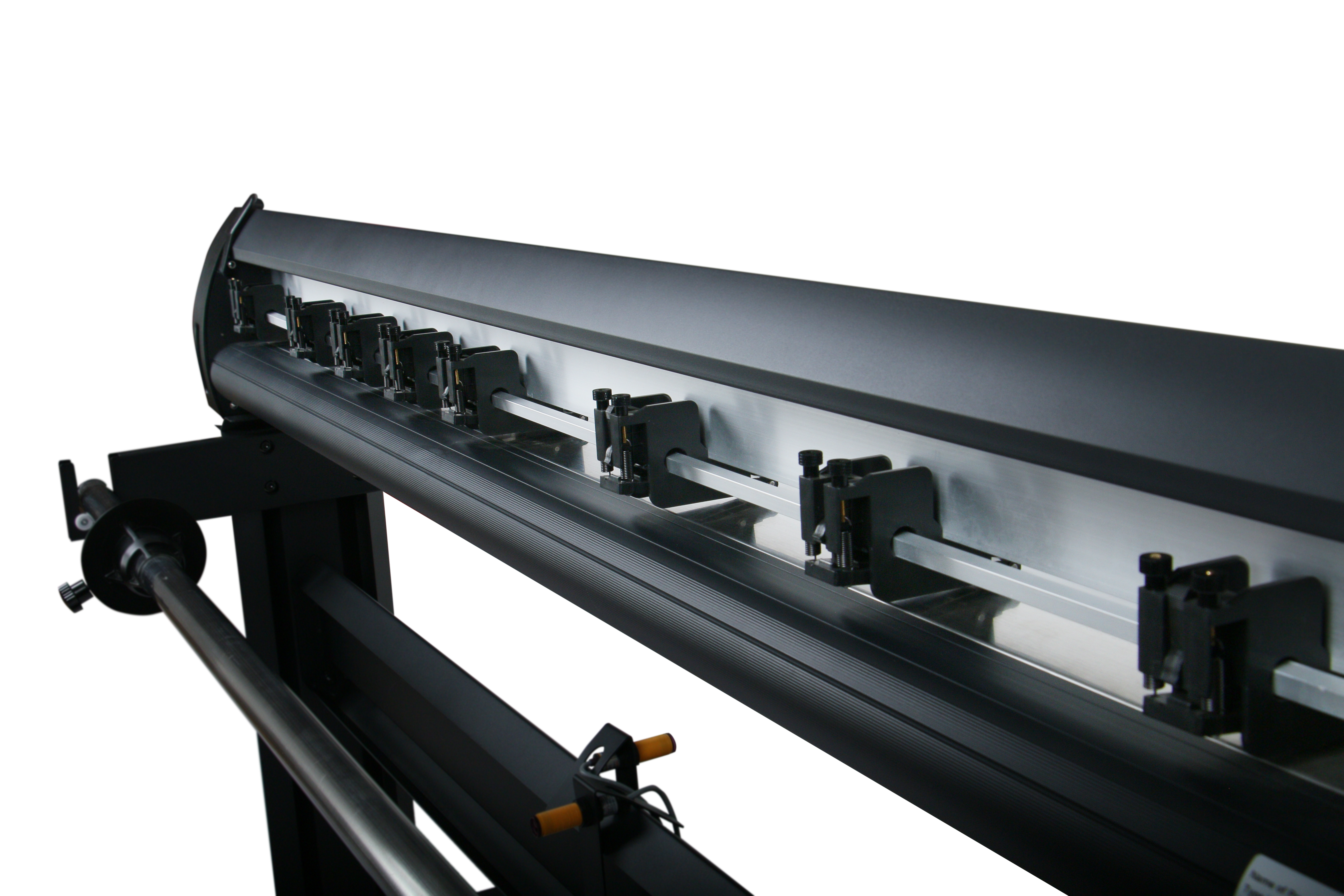

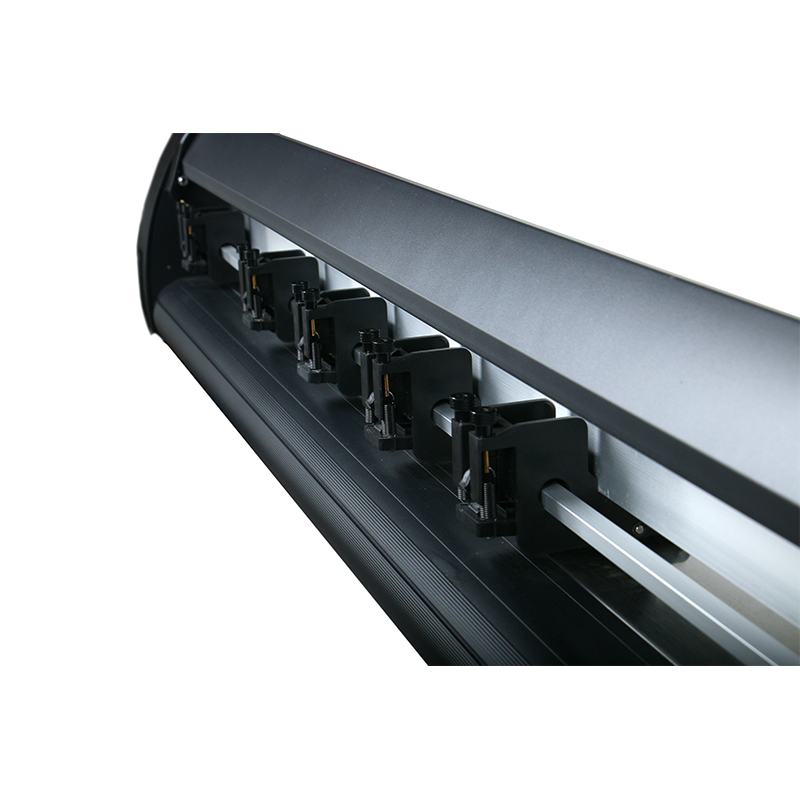

M1600 压轮组-1Pinch roller

All-in-one pinch rollers, offer enough pressure.

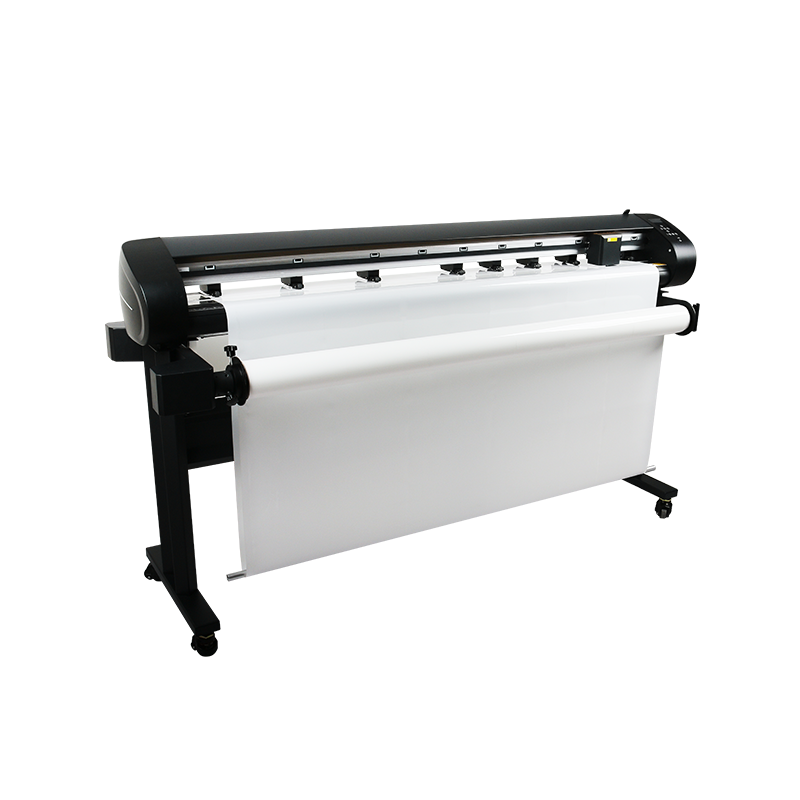

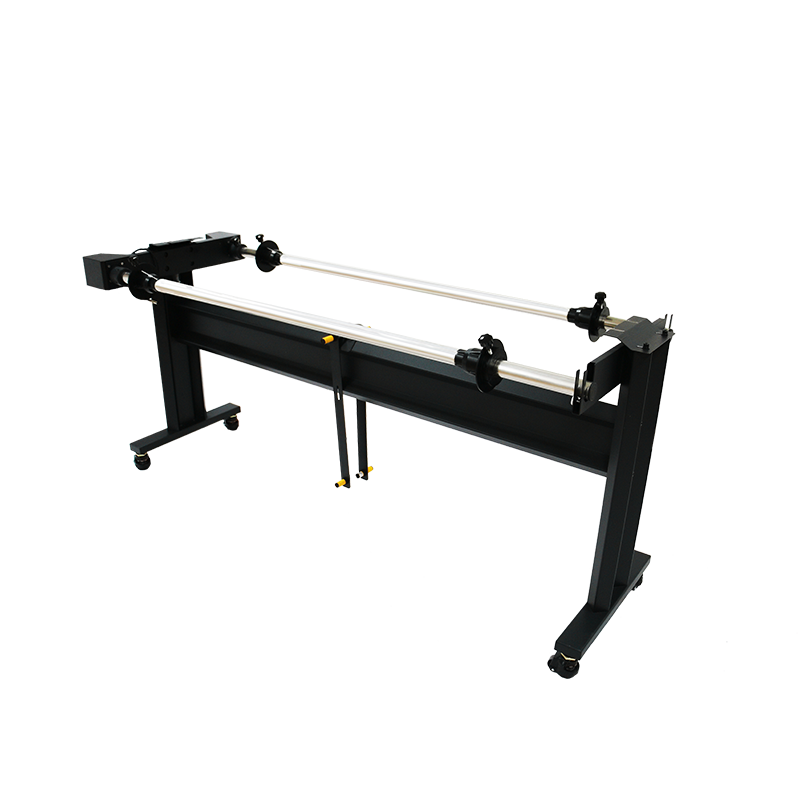

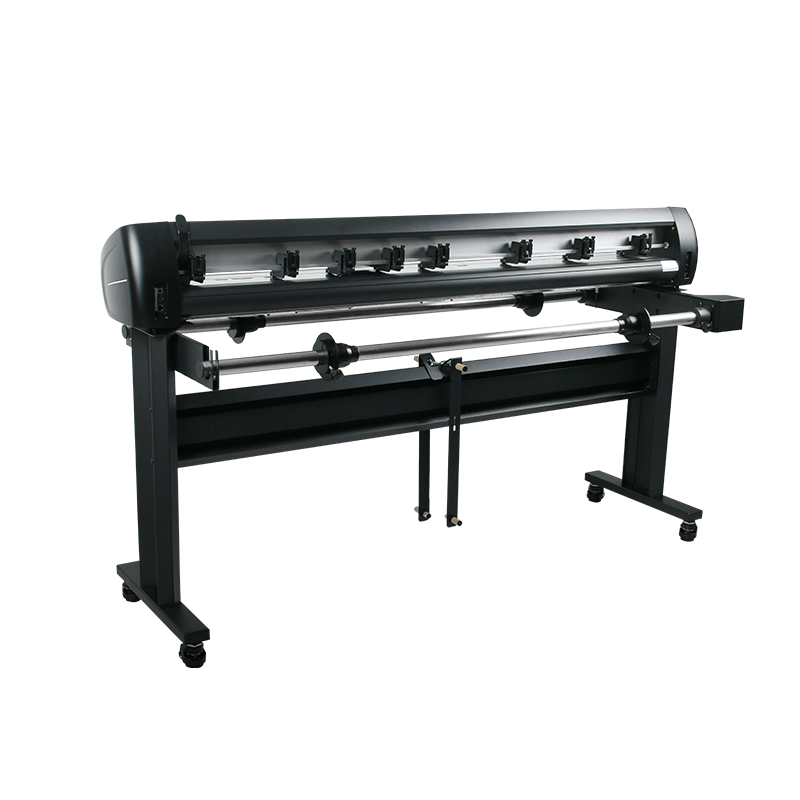

电动支架Automatic material feeding stand

For optional, you can choose this stand according to your demand.

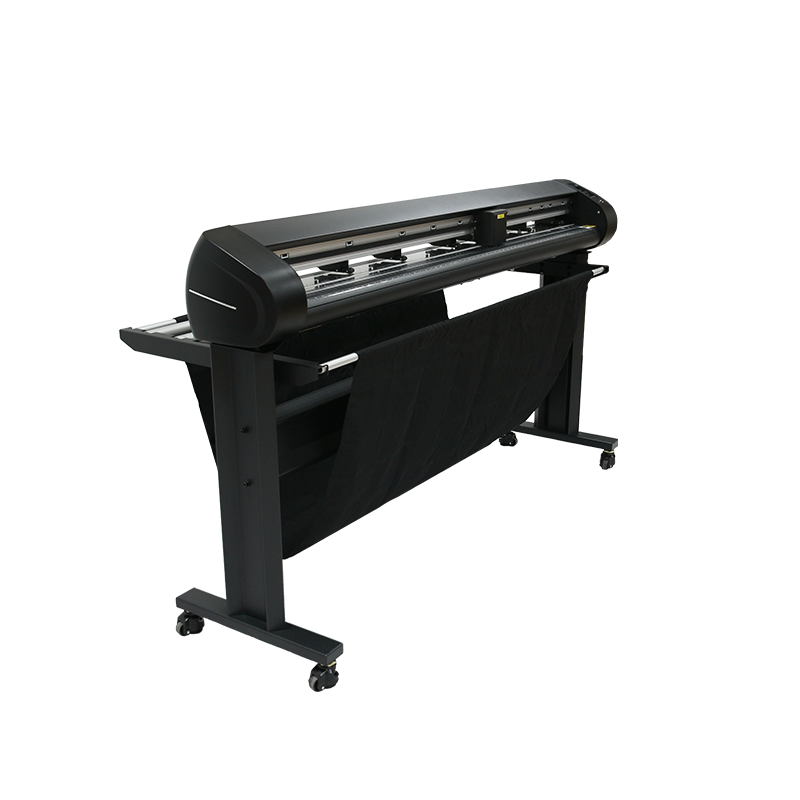

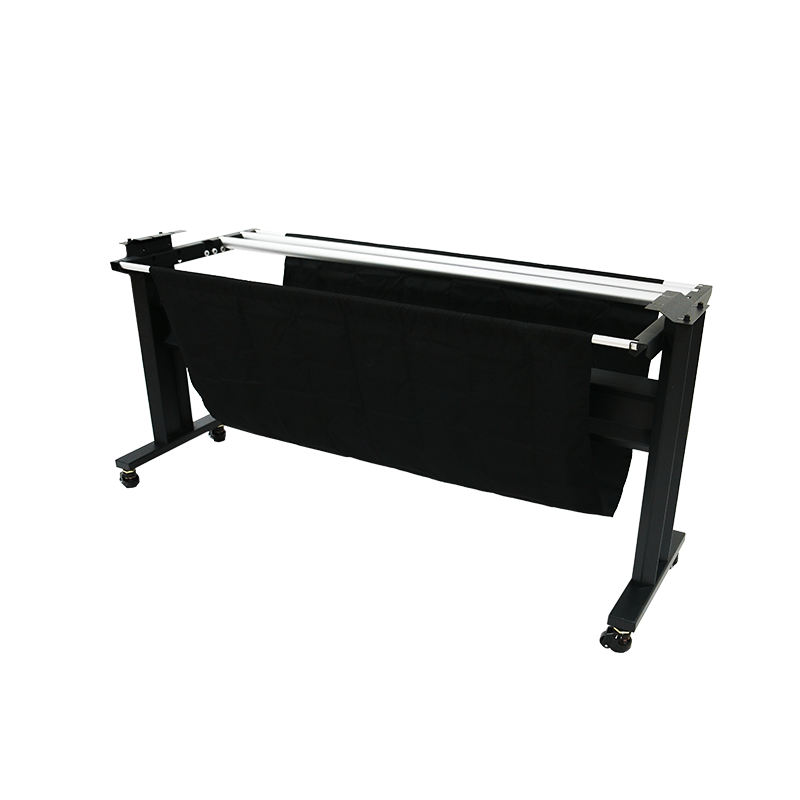

普通支架Normal stand

A normal stand will be included in the package of the machine

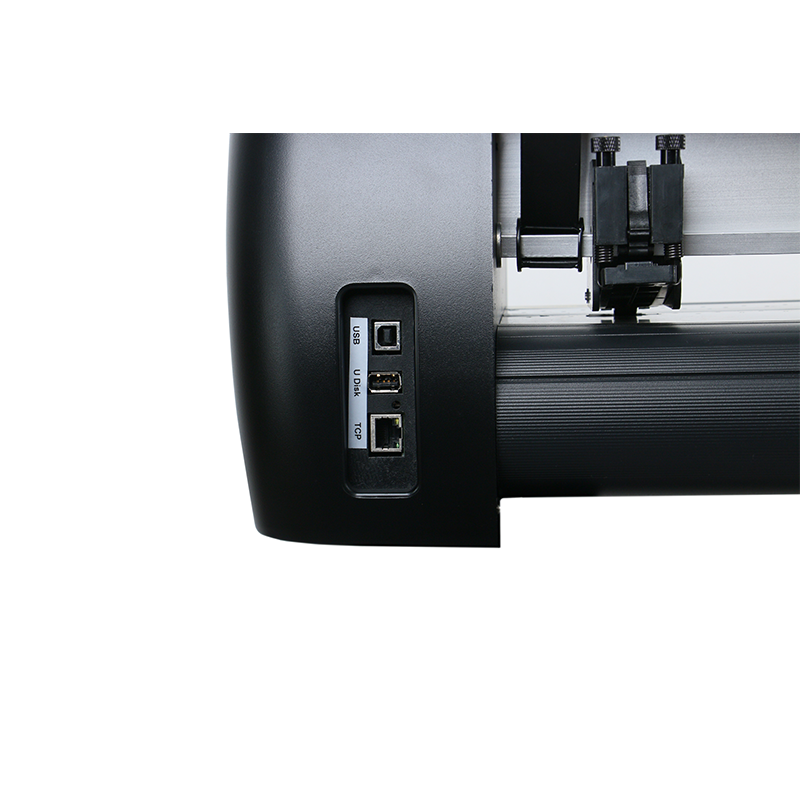

M1600 接口板Interface

USB 2.0+USB flash disk+TCP port.

It allows to work with the computer by a USB cable, or offline work by a U disk, TCP port allows several computer in one LAN to control the machine.

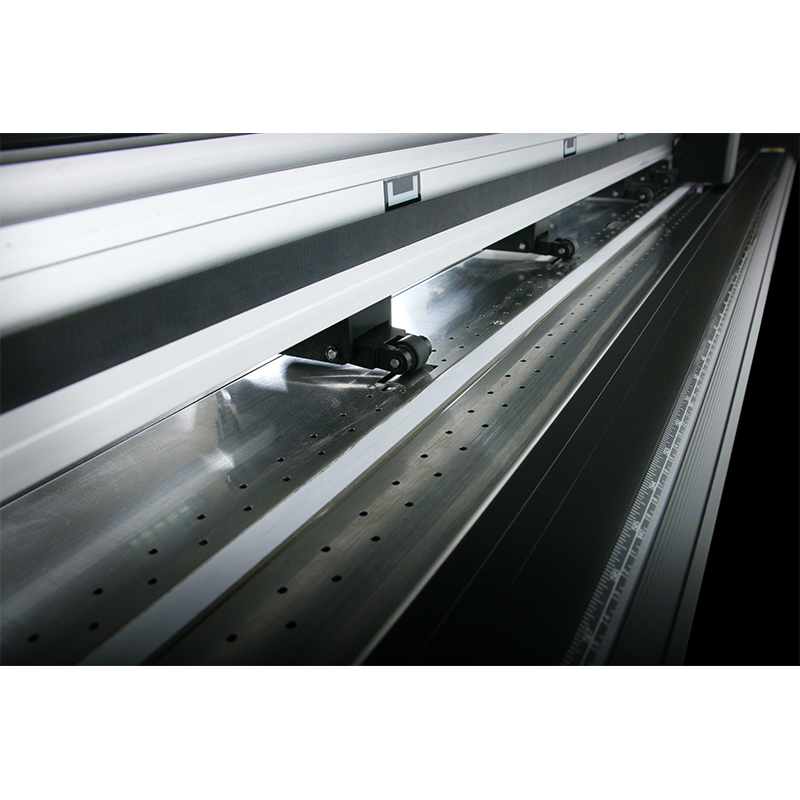

M1600 吸风平台

The fan-suction system

The Fan-suction system make sure that the machine feeding the material more smoothly and cut 10 meters stright line without deviation.

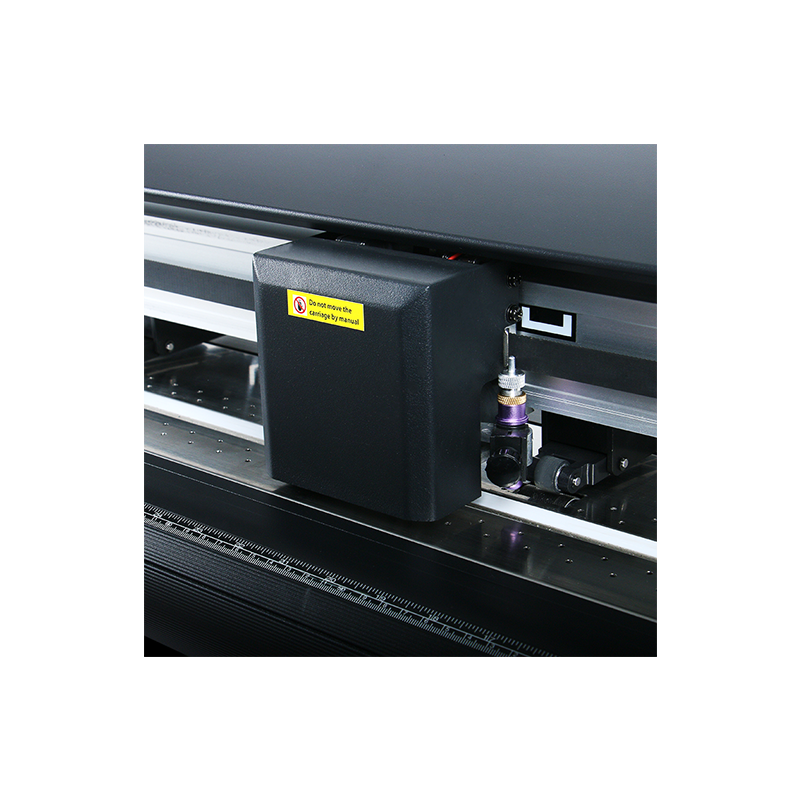

M1600 小车Carriage

 Carriage includes a HD camera which can scan mark point and QR code very  precision.
