◆Adopting imported Taiwan linear guide rail, large loading,working smoothly , high precision.
◆X/Y/Z axis adopted high precision rolling ball screw, ensure high precision engraving work.
◆Moving table, casting structure, heavy duty, long time using not deformation, whole machine working smoothly to make high engraving work.
◆Special control system , stably with memory function, can continue to work after tools breaking or power off.
◆AC servo motor and drivers, high precision and good working
◆High power spindle, depth cutting, high production
◆Software compatible:Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam etc.
|
| |

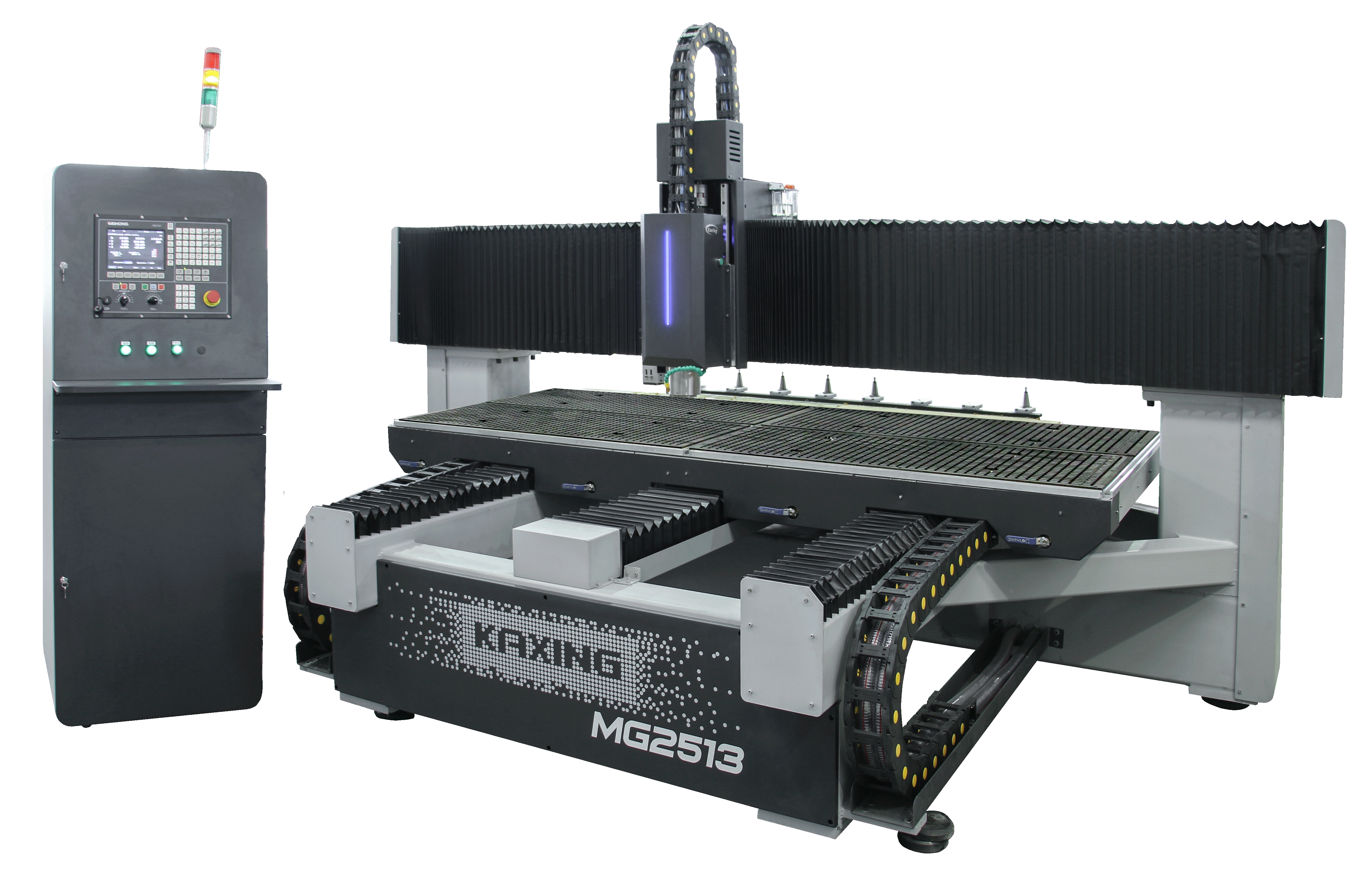

MG2513-8T
Kaxing
MG2513-8T
◆Adopting imported Taiwan linear guide rail, large loading,working smoothly , high precision.
◆X/Y/Z axis adopted high precision rolling ball screw, ensure high precision engraving work.
◆Moving table, casting structure, heavy duty, long time using not deformation, whole machine working smoothly to make high engraving work.
◆Special control system , stably with memory function, can continue to work after tools breaking or power off.
◆AC servo motor and drivers, high precision and good working
◆High power spindle, depth cutting, high production
◆Software compatible:Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam etc.
MG2513-8T | ||
性能指标 Specification | 参数 parameter | |
行程work stroke | XYZ行程 XYZ stroke | X 2500mm X Y 1350mm Z200mm |
精度accuracy | 加工精度accuracy | 0.05mm |
重复定位精度 repeated accuracy | 0.02mm | |
速度speed | 最大空行速度 idle speed | 30000mm/min |
最大工作速度 work speed | X/Y：15000mm/min ；Z向：6000mm/min | |
主轴spindle | 主轴功率 Power | 水冷换刀主轴AC380V/7.5KW BT-30 |
主轴转速 Speed | 6000~24000r/min | |
刀库magazine | 换刀时间Tool change time | 5S |
刀库容量 Tool magazine | 排式8把（刀径自选）Linear line 8pcs | |
运行模式Driving system | 伺服驱动 AC servo motor | |
工作电压 Voltage | AC380V/50Hz | |
运行指令 Format | G代码/NC代码 G code/ NC code | |
操作系统 Control system | 维宏一体机 Nc studio | |
吸附功率Vaccum power | 7.5KW | |
吸尘功率 Dust collector power | 3.0KW | |
外形尺寸Dimension | 3700mm×2400mm×1800mm | |
毛重 Gross weight | ≈2300kg | |
Standard configuration
◆ System: Nc studio NK260 with hand wheel
◆ Driver: Delta AC servo motor, X/Y axis 1.5kw, Z axis 1kw with brake.
◆ Inverter : Delta 9kw VFD
◆Spindle: Water cooled tool changing spindle HQD AC380V/7.5KW BT-30
◆Auto lubriction and dust proof
◆X/Y/Z axis all screw ball transmission
◆ 7.5kw vacuum pump
Optional
Brand spindle： □ HSD
Control system： □ Syntec + hand wheel □ Nc sutido NC60A+ hand wheel
Drivers： □ AC servo （□ Yaskawa □ Panasionc □ Delta） ， （□ Z axis with brake）

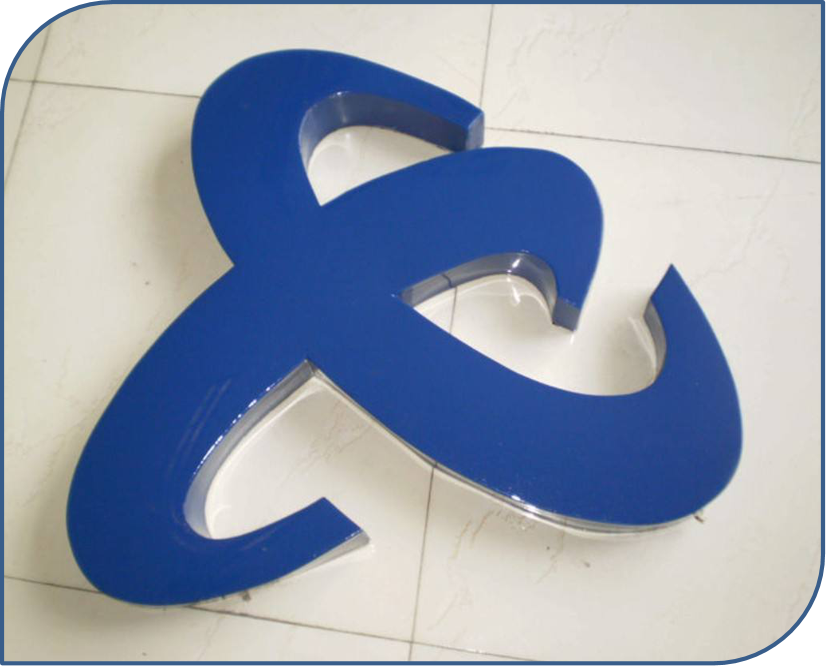

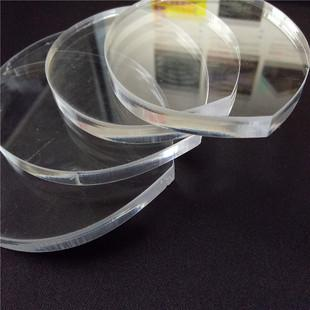

Acrylic, sofa, solid furniture,windows ,solid wood and compound doors, cabinet doors and etc.
