CNC Aluminum Veneer Engraving Machine(MT-2040/2050/2060)

1. Aluminum veneer machine working area:2000×4000mm ，2000×5000mm，2000×6000mm.Other models and sizes can be customized according to the actual needs of manufacturers

2.  The maximum operating speed is more than 68m/ min-120m /min, and the processing speed is 5-12m /min,Allows dynamic adjustment of processing speed and cutting speed during processing.

3.The two-process engraving machine adopts dual-spindle processing. T1 axis corner code hole cutting and drilling can be done in one step. It can cut 15MM on the aluminum plate at one time. The cutting edge is smooth, without burrs, and does not deform.  The working efficiency and speed of the T2 axis automatic tool change and automatic switching machine are increased by 2-3 times compared with previous years. It directly replaces CNC punching and other equipment.

4.Compatible with TYPE 3/Artcam/CAXA/UG/Pro-E/Mastercam/JD etc.

5. Intelligent 3D CNC control function,realize three-axis linkage, can carry out fast, smooth three-dimensional processing, drilling or special-shaped cutting, special-shaped cutting, hollow carving and other processes.

6. This equipment is ready to use without returning to the machine origin. It has functions such as breakpoint, power failure recovery, and processing time prediction.

7. The material can be  extended arbitrarily along the front and real directions,which is convenient for processing.

8.  The equipment provider shall provide free technical operation training ,The equipment system and software shall provide free lifetime technology upgrade and free training on new functions in real time.

9. The original pulling fixture can move forward and backward, and can effectively avoid the perfect cutting of corner holes and open vacancies.

10. Adopting an effective water mist cooling system improves the service life and production cost of the tool, and saves the time of frequent tool change.

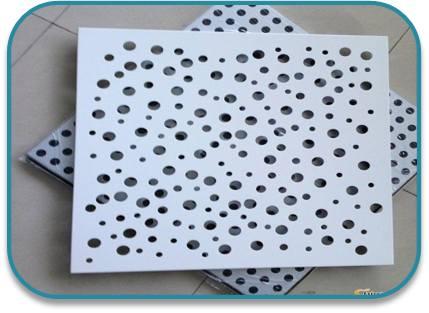

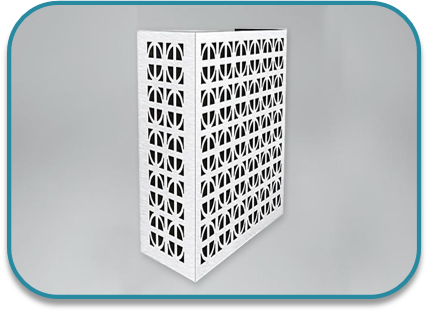

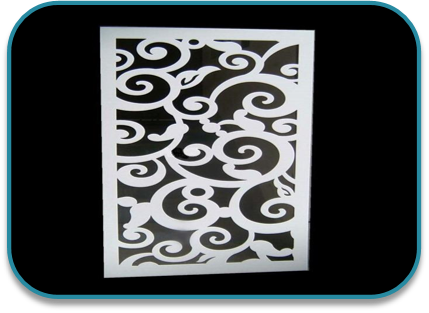

11. The aluminum veneer special machine is suitable for cutting aluminum plates and composite materials with a thickness of 1MM-30MM.

12. It can be used for cutting, drilling, grooving, and engraving of various aluminum plates, copper plates, metal, and non-metallic materials as standard. It can cut aluminum plates, splints, plastic plates, etc., with a thickness of 5mm.  The processing speed of 3mm thick aluminum plate can reach 6000mm---12000mm/min, and 5 plates can be stacked. The processing speed is determined according to the characteristics of the material, the thickness of the material and the condition of the tool used.
