The machine adopts heavy duty structure in steel welding .Five-sided milling machining processing,higher accuracy and more stable.Tempering aging,solid and non-deformation;double tables design,which is suitable for diffierent height work piece,strong structure.
Excellent components:three axis adopts linear guide rail from Taiwan,X/Y drive by helical pinion rack.Z axis with ball screw.large power loading,high precision.
Reasonable configuration:Weihong all-in-one machine control system,running smoothly,Programs are not afraid of viruses;domestic brand water cooling spindle,large torque,high processing efficiency.The drive system adopts Leadshine AC servo,high processing accuracy,high torque and perfect safety protection.
Double stations working:Can process two same workpiece at the same time, also can mirror engraving, greatly improve the production efficiency.
Sofrware compatible:open software interface,compatible with various software of CAM:Type3/artcam/castmate/Wentai and etc CAD/CAM design software generated processing code.Ensure design accessibility.
|
| |

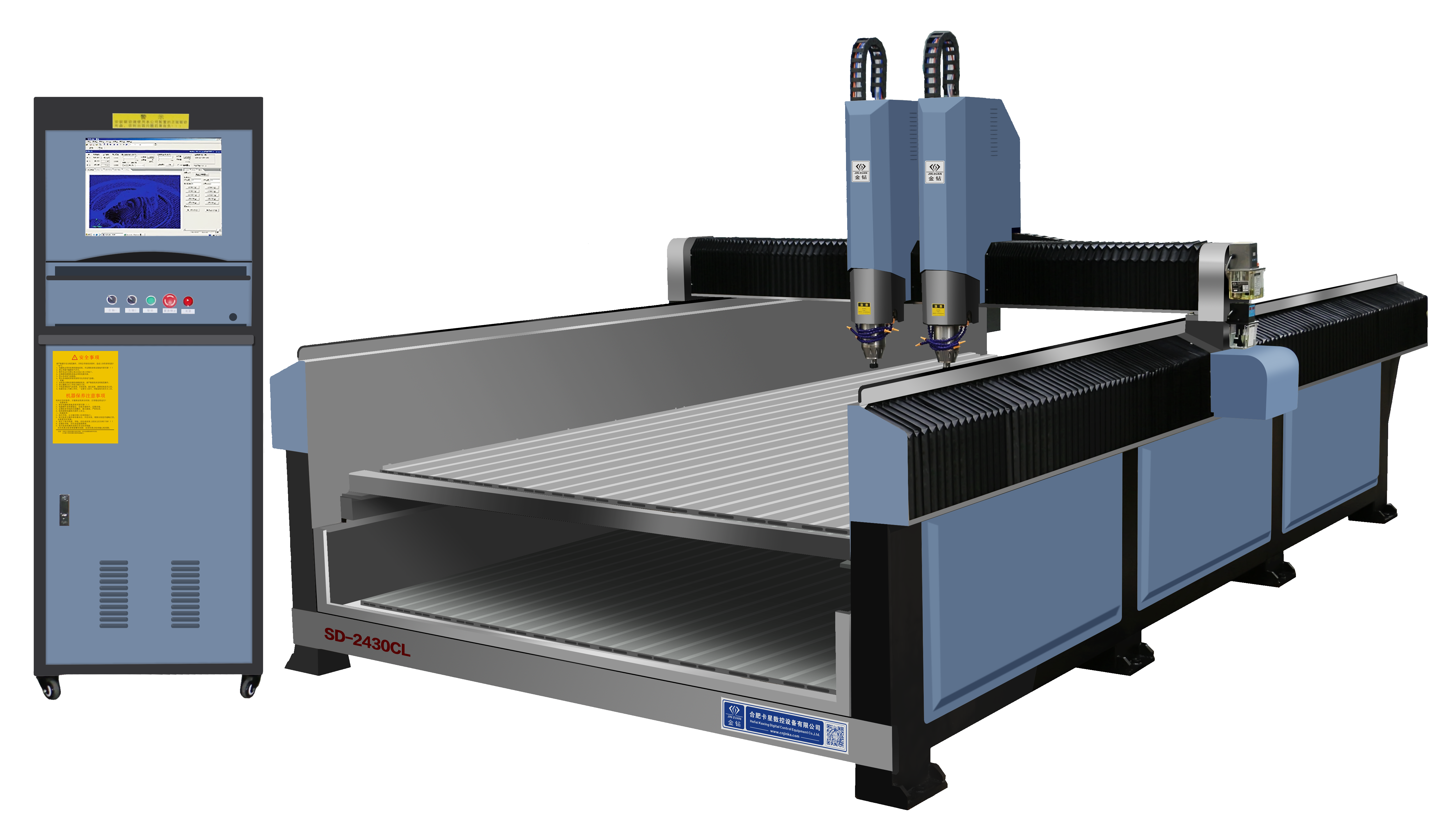

SD-2430CL
Kaxing
SD-2430CL
The machine adopts heavy duty structure in steel welding .Five-sided milling machining processing,higher accuracy and more stable.Tempering aging,solid and non-deformation;double tables design,which is suitable for diffierent height work piece,strong structure.
Excellent components:three axis adopts linear guide rail from Taiwan,X/Y drive by helical pinion rack.Z axis with ball screw.large power loading,high precision.
Reasonable configuration:Weihong all-in-one machine control system,running smoothly,Programs are not afraid of viruses;domestic brand water cooling spindle,large torque,high processing efficiency.The drive system adopts Leadshine AC servo,high processing accuracy,high torque and perfect safety protection.
Double stations working:Can process two same workpiece at the same time, also can mirror engraving, greatly improve the production efficiency.
Sofrware compatible:open software interface,compatible with various software of CAM:Type3/artcam/castmate/Wentai and etc CAD/CAM design software generated processing code.Ensure design accessibility.
Feature | Technical parameters | |
Stroke | X Stroke | 2400mm |
Y stroke | 3000mm | |
Z stroke | 530mm | |
Accuracy | Machining precision | ±0.05mm |
Repeatable positioning accuracy | ±0.03mm | |
Structure | table structure | double tables, gantry move |
the transmission structure of XYZ | XY gear rack drive;Z aixs,screw drive | |
Speed | Max. Idle speed | 30000mm/min |
Max.work speed | X/Y：15000mm/min ；Z：3000mm/min | |
Spindle | Spindle power | 7.5KWor5.5KW |
Spindle speed | 6000~24000r/min | |
/drive system | AC sever(Leadshine) | |
work voltage | AC380V/50Hz | |
file format | G code/NC code/ENG code | |
control system | Nc studio | |
Dimension | 3700mm X 4050mm X 2600mm | |
G.W | 2.5T | |
Application
Granite Marble Large plate Artificial stone and other kinds of stone,engraving and cutting
