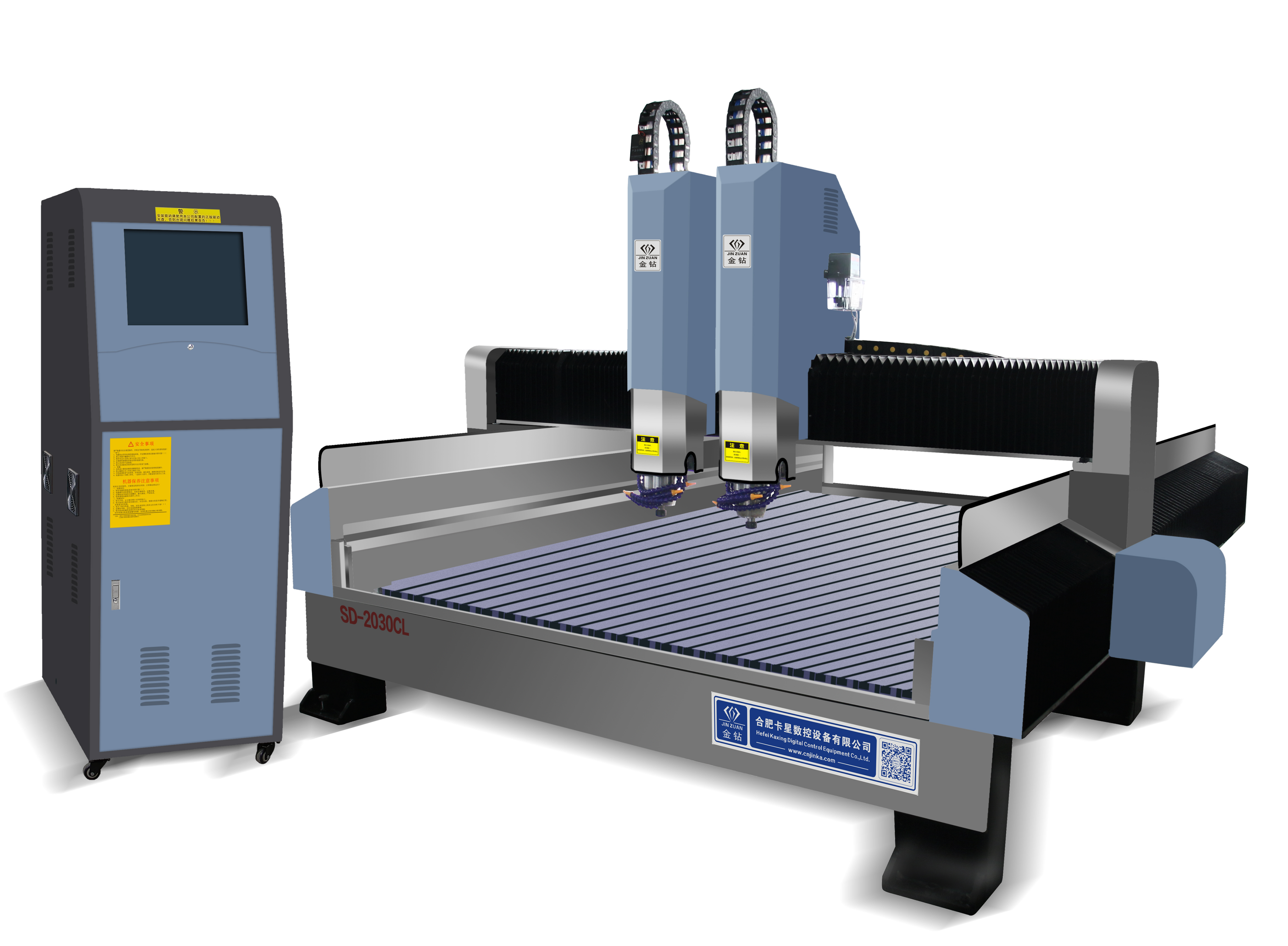

SD-2030CL Stone Processing CNC Machine


-Adopting imported linear square rail contributes to heavy loading, stable running, and high precision.
-Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
-Employing high precision preload rolling ball screw for Z axis endures High accuracy of engraving.
-CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools

-Integrated body with gantry movement design features rigidity and non deformation.

Availability:

  • SD-2030CL

  • Kaxing

  • SD-2030CL

Product Description


-Adopting imported linear square rail contributes to heavy loading, stable running, and high precision.
-Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
-Employing high precision preload rolling ball screw for Z axis endures High accuracy of engraving.
-CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools

-Integrated body with gantry movement design features rigidity and non deformation.


Product Paramenters


Features

Paratemer

X/Y/Z stroke

2000mm*3000mm*330mm

Precision

±0.05mm

Repositioning

±0.03mm

Table structure

gantry moving

X/Y/Z transmission

X/Y axes: rack ；Z axis：ball screw

Max idle speed

30000mm/min

Max working speed

X/Y：15000mm/min  ；Z axis：3000mm/min

Spindle power

380V/2X7.5KW water cool

Spindle speed

6000~24000r/min

Drive system

AC servo

Workiing voltage

AC220V/50Hz

File format

G code/NC code/ENG code

Controller

Nc studio

Standard
Control system: Nc Studio
Driver: Leadshine servo motor 1108
Spindle: 7.5kw water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: High quality steel structure welded body with large brackets
Table: T-slot aluminum table with stainless steel sink
Lubrication: Automatic oil lubricating system
Dust cover for X, Y axis
Patented box type brackets
Patented appearance
Optional
-Double independent Z axes
-DSP A11
-Panasonic, Yaskawa AC servo Motor
-High performance air cooling spindle
-Rolling ball screw transmission for X axis
-Industrial cooling syste
Application

Marble, Granite, Blue Stone, Jade, Crystal, Tomb Stone, Agate, Porcelain ,Glass, Plastic, Chemical Synthetic Board, Bamboo, Wood, Stainless Steel, Iron, Copper, Aluminum, Titanium Alloy.
