Countertop control system: it can be cut, edged, and formed at one time for the rear water barrier, with simple operation, practical functions and stable use.
Water cooled atc spindle, Convenient tool change for various machining requirements
Three-axis adopts high-precision linear guide, high bearing capacity and long service life
The three-axis adopts AC servo motor, which has large torque and strong stabilit
With the tool setter, the table is equipped with double-sided suction cups and positioning cylinders as required
|
| |

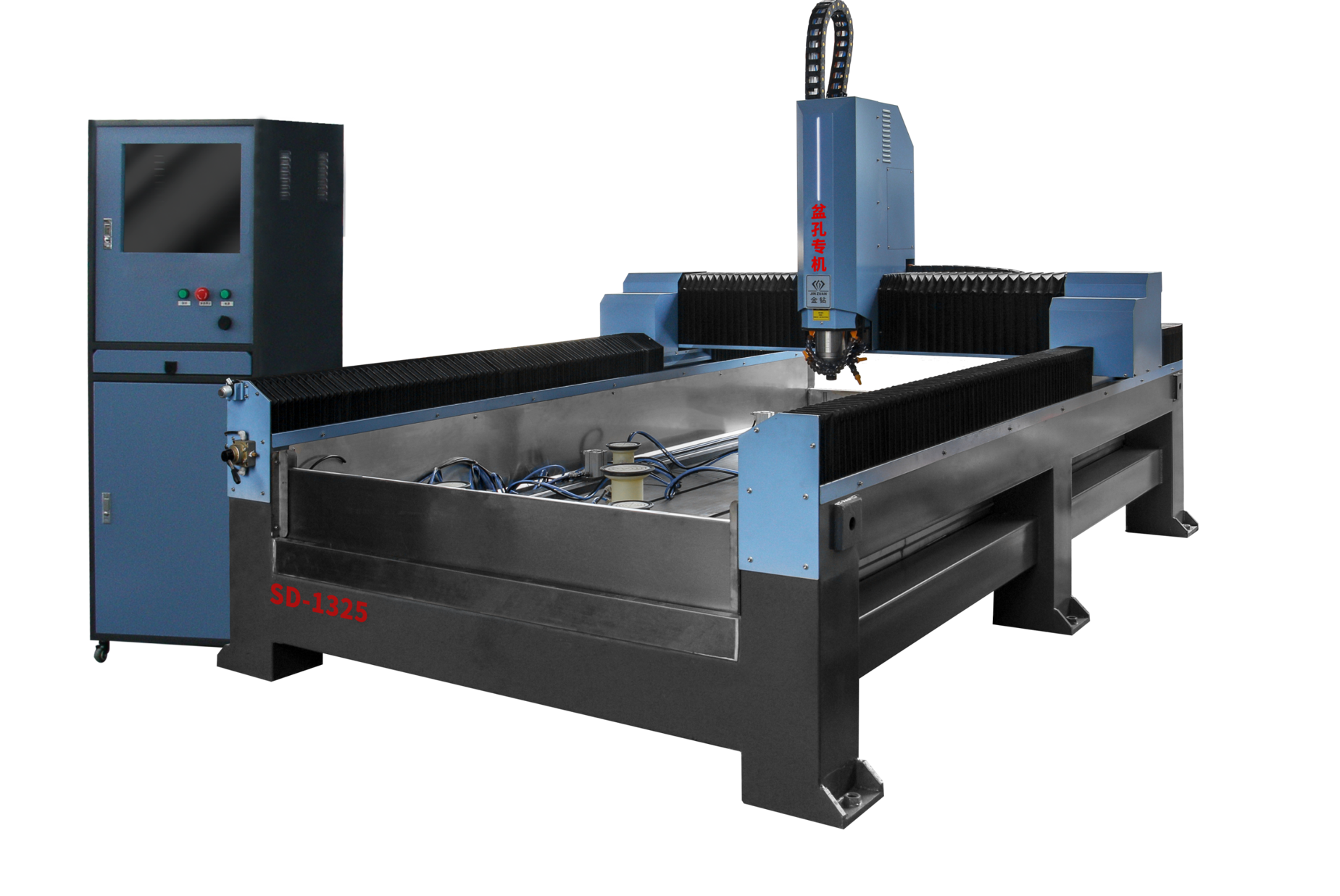

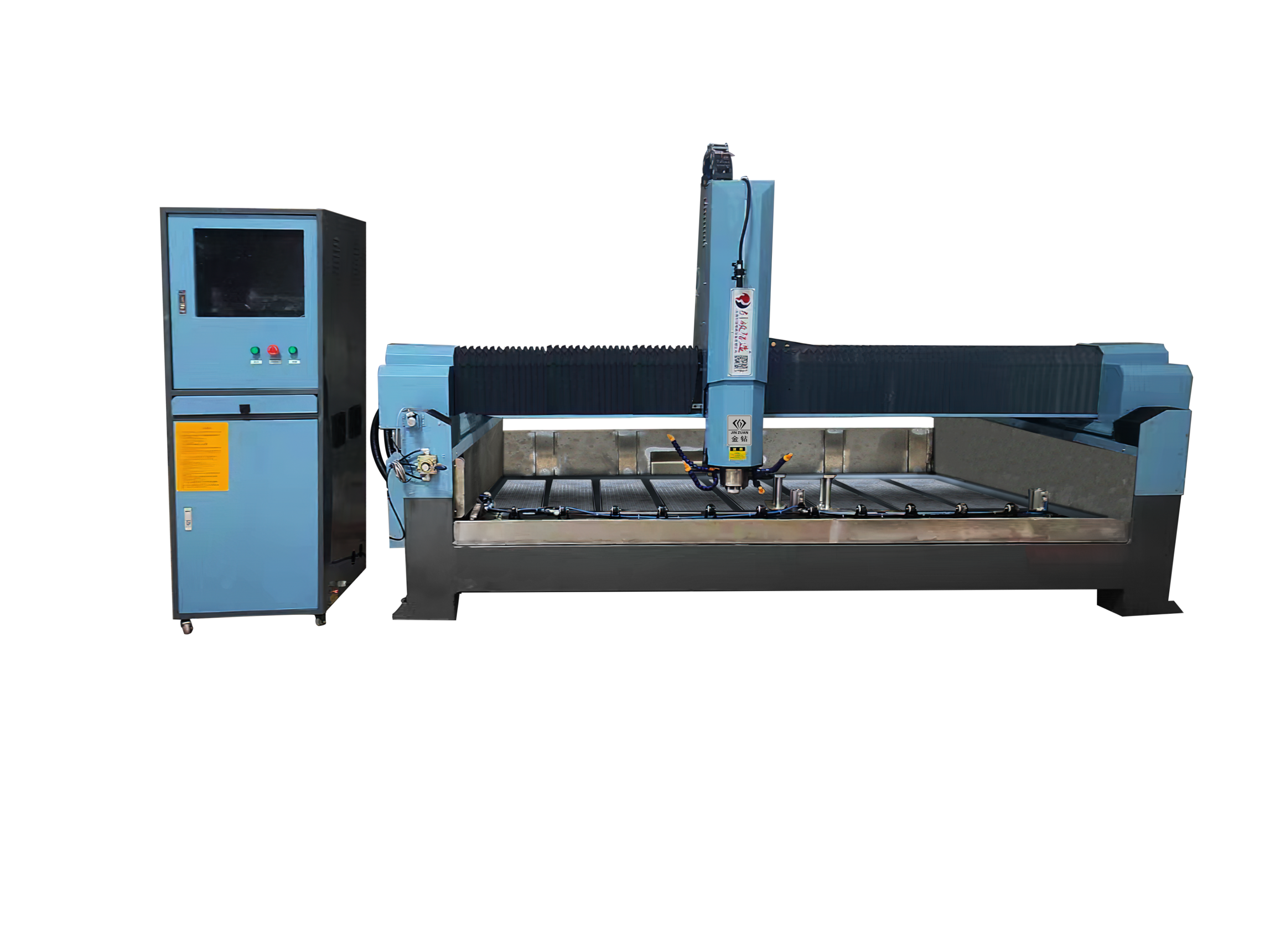

SD-1325/2513
JINKA
SD-1325/2513
Countertop control system: it can be cut, edged, and formed at one time for the rear water barrier, with simple operation, practical functions and stable use.
Water cooled atc spindle, Convenient tool change for various machining requirements
Three-axis adopts high-precision linear guide, high bearing capacity and long service life
The three-axis adopts AC servo motor, which has large torque and strong stabilit
With the tool setter, the table is equipped with double-sided suction cups and positioning cylinders as required
| Model | SD-1325 | SD-2513 |
| Table size | 1300*2500mm | 2500*1300mm |
| Feed height | 430mm | |
| ldle speed | 15m/min | |
| Working speed | 4m~8m/min | |
| Spindle power | 380V7.5KWWater cooled spindle | |
| Spindle speed | 3000~24000 RPM | |
| Working voltage | AC380/50Hz | |
| Tool | Countertop cutting spindle | |
| File format | NC | |
| Positioning accuracy | ±0.05mm | |
| Repeatability positioning accuracy | ±0.02mm | |
| Control system | Countertop control system | |

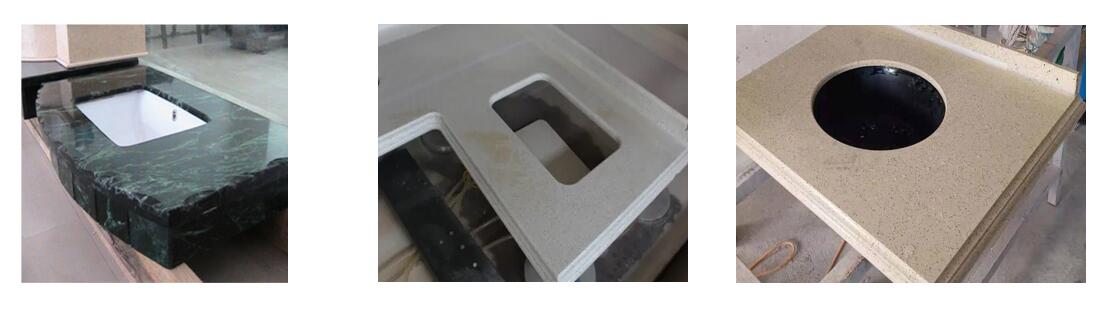

Mainly suitable for quartz stone, marble bathroom, kitchen countertops, bar counters, washbasins, basin openings and edging, and the backwater can be formed at one time.
Countertop control system: it can be cut, edged, and formed at one time for the rear water barrier, with simple operation, practical functions and stable use.
Water cooled atc spindle, Convenient tool change for various machining requirements
Three-axis adopts high-precision linear guide, high bearing capacity and long service life
The three-axis adopts AC servo motor, which has large torque and strong stabilit
With the tool setter, the table is equipped with double-sided suction cups and positioning cylinders as required
| Model | SD-1325 | SD-2513 |
| Table size | 1300*2500mm | 2500*1300mm |
| Feed height | 430mm | |
| ldle speed | 15m/min | |
| Working speed | 4m~8m/min | |
| Spindle power | 380V7.5KWWater cooled spindle | |
| Spindle speed | 3000~24000 RPM | |
| Working voltage | AC380/50Hz | |
| Tool | Countertop cutting spindle | |
| File format | NC | |
| Positioning accuracy | ±0.05mm | |
| Repeatability positioning accuracy | ±0.02mm | |
| Control system | Countertop control system | |
Mainly suitable for quartz stone, marble bathroom, kitchen countertops, bar counters, washbasins, basin openings and edging, and the backwater can be formed at one time.
