◆ Advanced CNC controller ；
◆ X/Y/C axis is driven by servo motor
◆ Fiber laser positioning, automatic contouring and positioning; intelligent shaped scanning, automatically generating graphics, realizing shaped cutting ；
◆ The cutter controlled by a high-precision pressure valve, and the cutting pressure is uniform to ensure consistent cutting, and the breaking of the piece is easy to break neatly ；
◆ The countertop is covered with anti-static industrial felt to ensure stable use; the belt conveyor is convenient for processing and movement; the table has multiple air holes, and the material is stabilized by a dedicated fan to facilitate the movement and removal of the material ；
|
| |

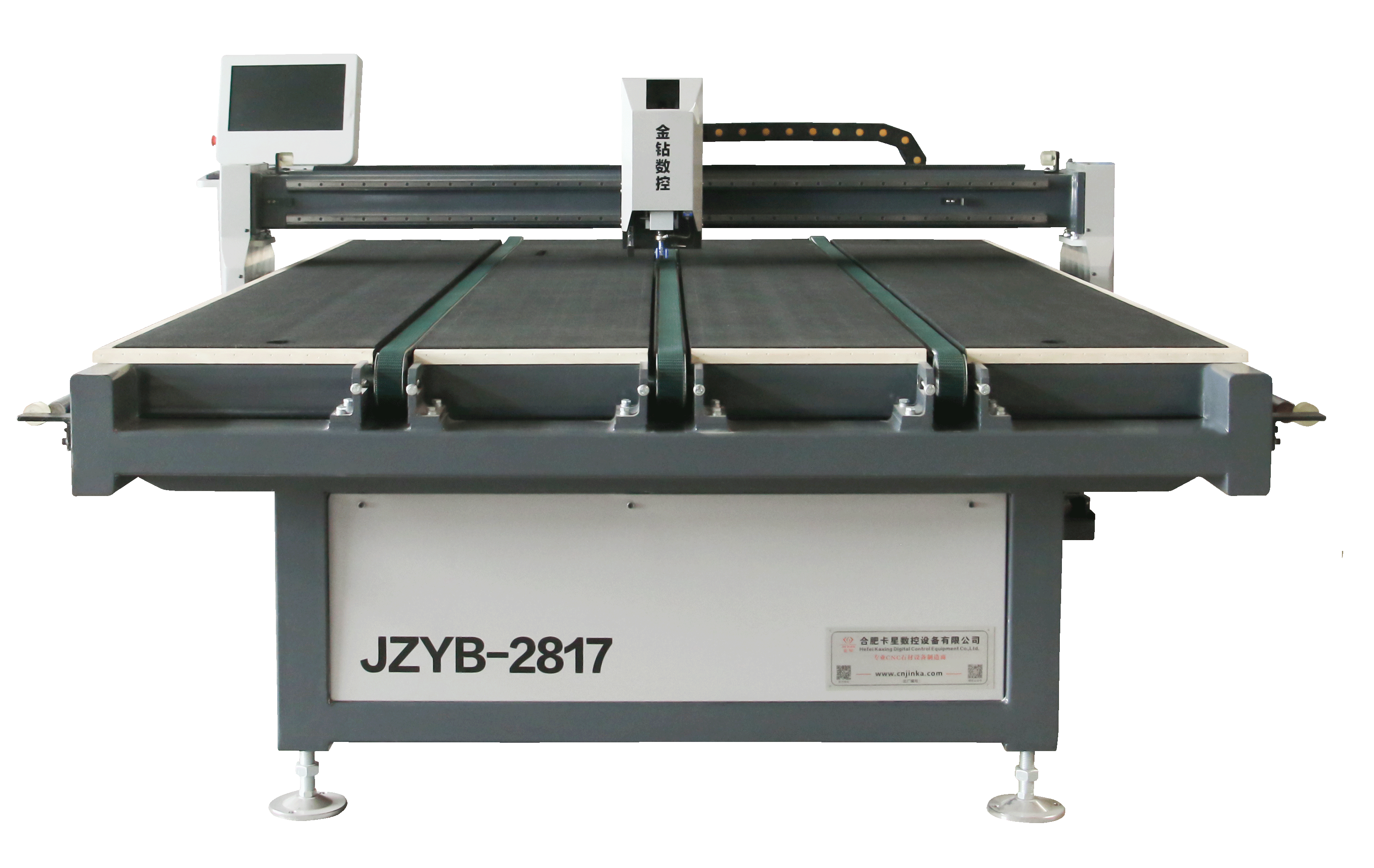

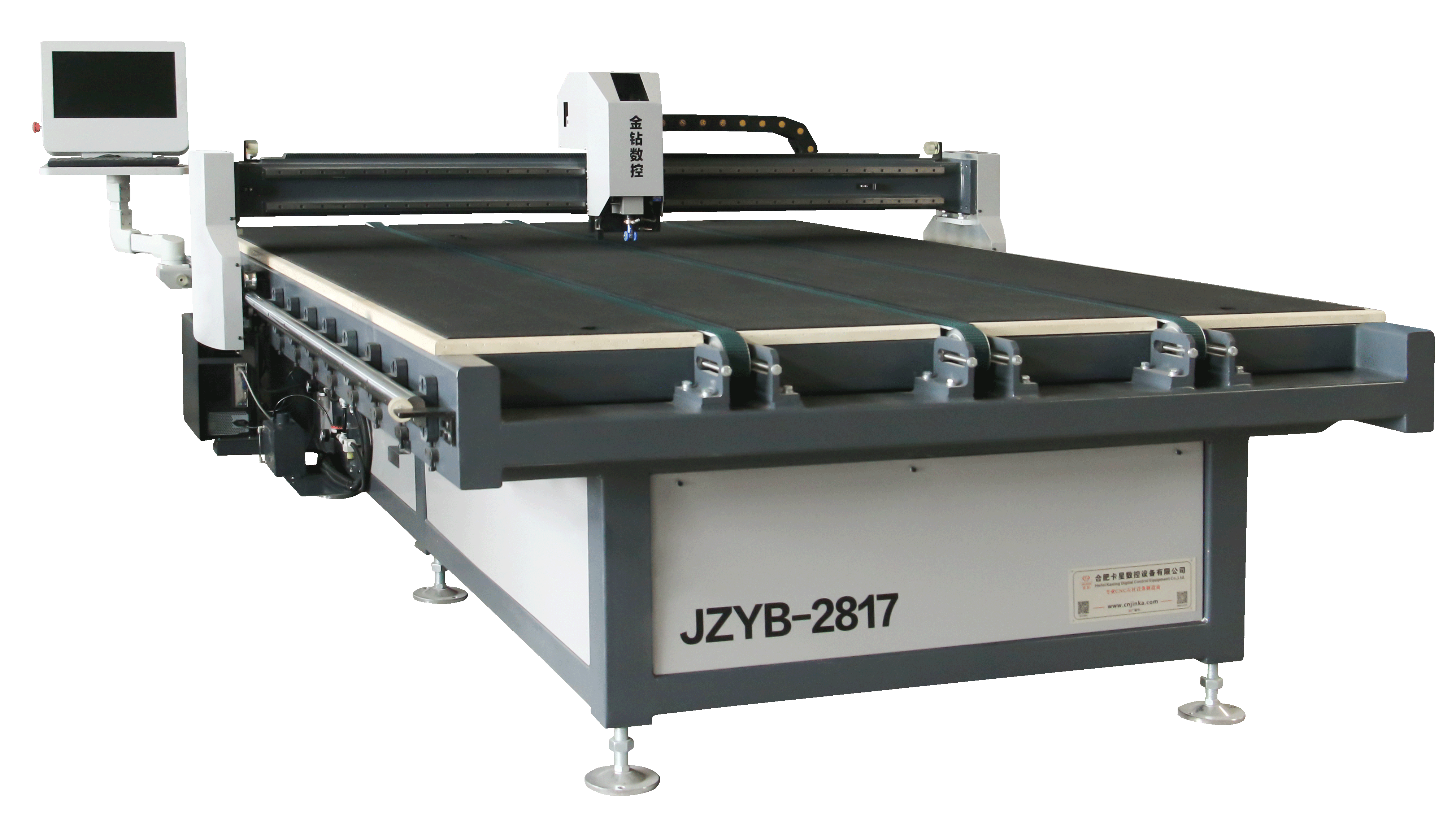

JZYB-2817
JINJKA
JZYB-2817
◆ Advanced CNC controller ；
◆ X/Y/C axis is driven by servo motor
◆ Fiber laser positioning, automatic contouring and positioning; intelligent shaped scanning, automatically generating graphics, realizing shaped cutting ；
◆ The cutter controlled by a high-precision pressure valve, and the cutting pressure is uniform to ensure consistent cutting, and the breaking of the piece is easy to break neatly ；
◆ The countertop is covered with anti-static industrial felt to ensure stable use; the belt conveyor is convenient for processing and movement; the table has multiple air holes, and the material is stabilized by a dedicated fan to facilitate the movement and removal of the material ；
Product Paramenters
Model | JZYB-2817 | JZYB-3617 |
Dimensions | 2300*3500*1500mm | 2300*4300*1500mm |
Table size | 2800*1700mm | 3600*1700mm |
Thickness of slab | 3~15mm | |
Laser positioning | Automatic contouring/intelligent shaped scanning | |
Table height | 900mm | |
Cutting speed | 0~180m/min | |
Precision | ≤±0.3mm/maccording to the cutting line before breaking the slab） | |
Cutter holder | 360 degree rotation | |
Automatic oil supply | Special cutting oil or kerosene | |
File format | DXF/Gcode/SCR format | |
Compress air | 0.7MPA | |
Working voltage | AC 380V | |
Total power | 5KW | |
Gross weight | ≈2T | |
Standard configuration：
◆ Special controller for sintered slab cutting
◆AC servo motor
◆Special blade wheel for cutting
◆Fiber laser positioning
◆Thickened profile
◆Table with an air floatation machine
◆ Anti-static industrial felt
◆ Synchronous action of special cutting oil and cutter
◆Special for thin slab cutting, fast and efficient
Application

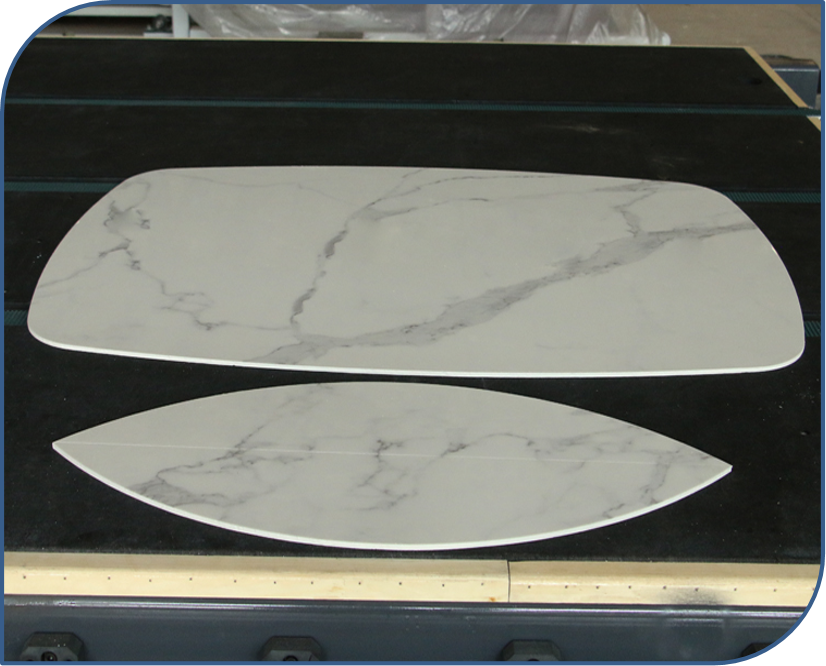

It is suitable for straight and special-shaped cutting of sintered slabs, ceramic slabs and glass with a thickness not more than 15MM ; it can cut arcs, circles, diamonds, horse belly, arc lines, wavy lines and CAD import cutting ；
