◆Nc studio control system, stable and high precision
◆Three axis adopted CSK 30 linear guide rail and large bearing capacity rack, high precision, long life
◆The whole machine adopts heavy duty structure, Gangry tempering treatment, good rigidity and not easy to deformation, the bearing force of the machine can reach more than one ton.
◆Three axes are equipped with Leadshine AC servo and brand reducer , large torque and strong stability, especially suitable for hard stone working
◆Using stainless steel tank, can adapt to the harsh working environment, improve the quality and increase the service life;
◆JINZUAN customized ,stone industry high-speed spindle , high wear resistance, cutting strength, high efficiency;
◆Two - way tool cooling system, effectively improve tool service life
◆CNC control system, with memory function, can continue to work after tools breaking or power off.
◆Compatible with any CAM software in the world:Type3/Artcam/CAXA/UG/Pro-E/Mastercam/JD etc.
|
| |
SD-2030H
Kaxing
SD-2030H
◆Nc studio control system, stable and high precision
◆Three axis adopted CSK 30 linear guide rail and large bearing capacity rack, high precision, long life
◆The whole machine adopts heavy duty structure, Gangry tempering treatment, good rigidity and not easy to deformation, the bearing force of the machine can reach more than one ton.
◆Three axes are equipped with Leadshine AC servo and brand reducer , large torque and strong stability, especially suitable for hard stone working
◆Using stainless steel tank, can adapt to the harsh working environment, improve the quality and increase the service life;
◆JINZUAN customized ,stone industry high-speed spindle , high wear resistance, cutting strength, high efficiency;
◆Two - way tool cooling system, effectively improve tool service life
◆CNC control system, with memory function, can continue to work after tools breaking or power off.
◆Compatible with any CAM software in the world:Type3/Artcam/CAXA/UG/Pro-E/Mastercam/JD etc.
SD-2030H | ||
参数/parameter | ||
行程/work stroke | X | 2000mm |
Y | 3000mm | |
Z | 330mm | |
精度/Accuracy | 加工精度/processing accuracy | ±0.05 |
重复定位精度 repeated positioning accuracy | ±0.03 | |
结构/structure | 台面结构/table structure | 龙门移动 |
X、Y、Z向传动结构/XYZ transmission structure | XY轴斜齿条+减速机；Z轴丝杆/XY gear rack+reducer,Z screw | |
速度/speed | 最大空行速度/Max. idle speed | 30000mm/min |
最大工作速度/Max.work speed | X/Y：15000mm/min ；Z：3000mm/min | |
主轴/spindle | 主轴功率/spindle power | 380V/2X7.5KW水冷/water cooled |
主轴转速/spindle speed | 6000~24000r/min | |
运行模式/drive system | 全交流伺服/AC servo motor | |
工作电压/work voltage | AC220V/50Hz | |
运行指令/file format | G/NC/ENG/ code | |
操作系统/control system | 维宏/Nc studio | |
SD-2030H standard configuration：
◆Nc studio -NC60A-3S controller；
◆XY drive by gear rack and reducer ,Z axis drive by screw；
◆XYZ axis equiped DONA 1.2kw AC servo motor,large power；
◆JINZUAN spindle specially for stone working, water cooled 380V/7.5KW*2；
◆ Heavy duty structure working table
◆High precision CSK guide and sliding block from Taiwan
SD-2030H Option configuration：
drvie system： /YASKAWA AC sevor
1108 /Leashine 1108
cooling system：industrial chiller
control system：Nc studio --NK105 controller □ DSP系统/DSP controller

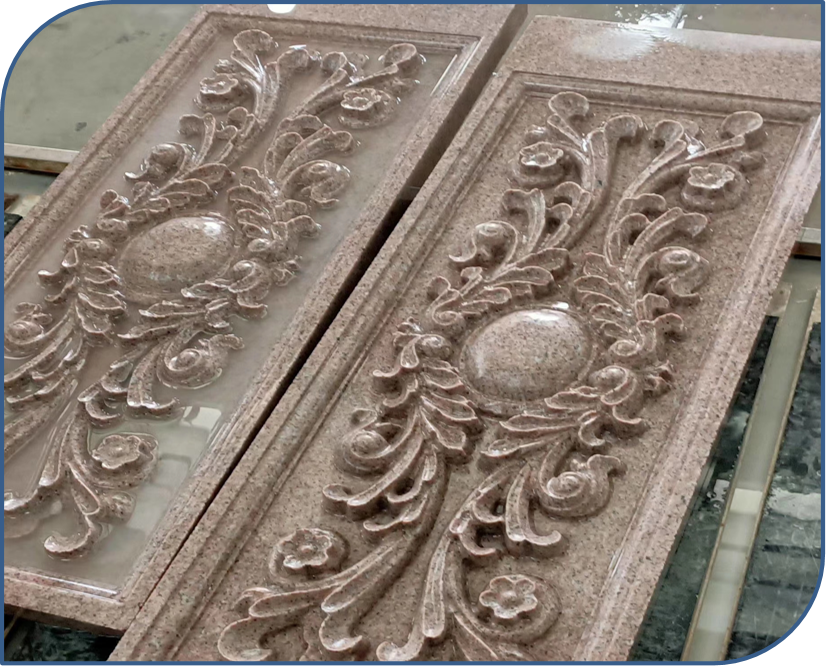

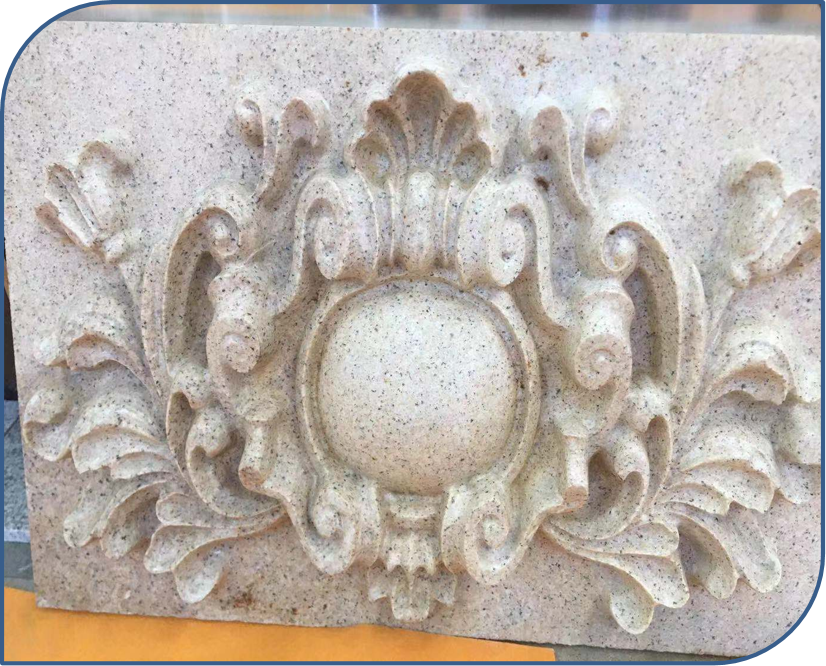

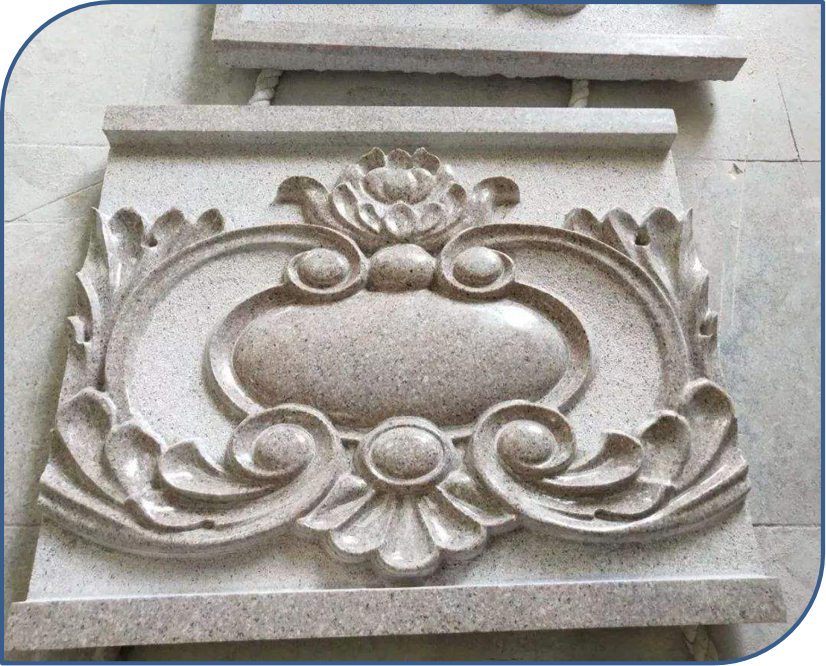

Granite, marble, bluestone, jade, crystal, stone tablet, agate, inkstone, copper, aluminum plate and other processing
