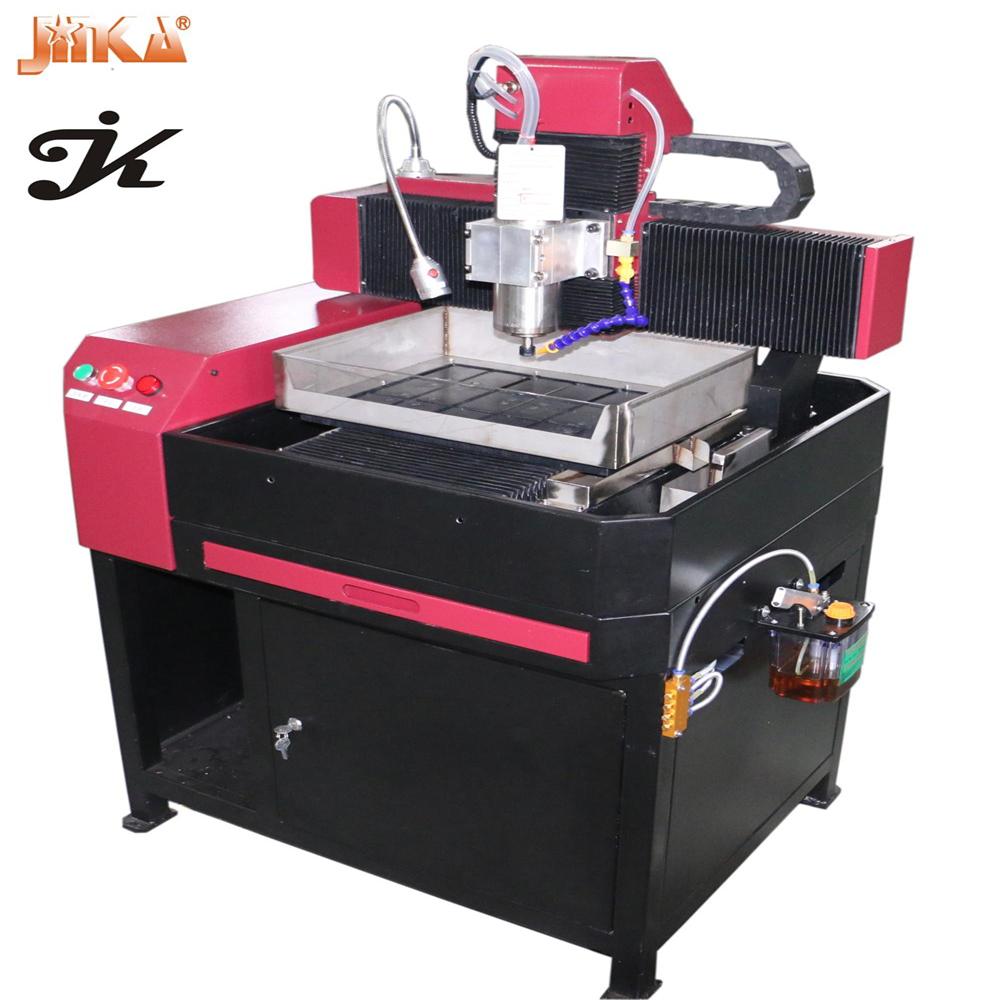

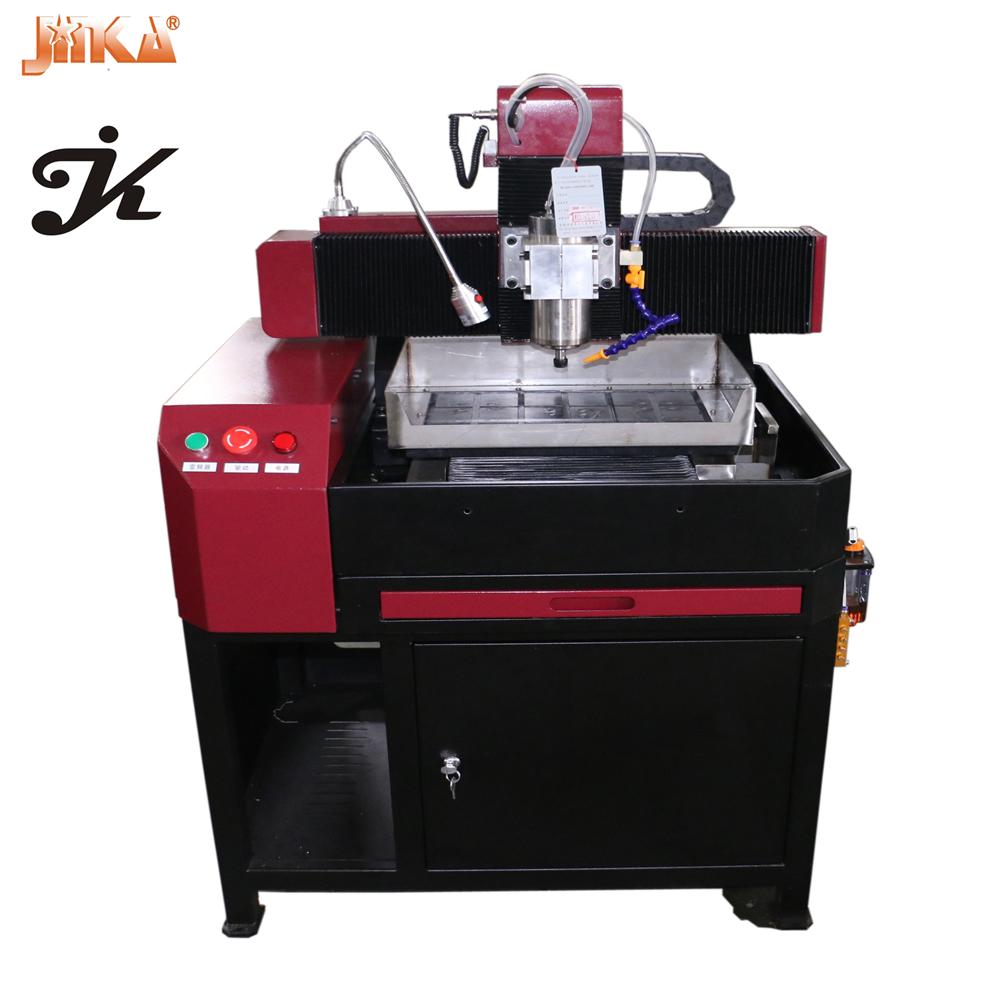

JK-3525
JINKA
JK-3525
Features：
◆Intergrated casting body features rigidity and non-deformation
◆Employing imported high precision rolling ballscrew processes high accuracy and speed
◆Constant power V/F water-cooling spindle features good performance, long torque and high efficiency
◆Intellective control of the processing speed, idle speed and down speed improves processing effiency and quality, and also extends the lifetime of tools
◆Recovery functions by remembering the working cordinate and continue to work with it after cutting of power, or braking of tools,
◆Compatible with any advanced CAM software, such as Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam and so on
Models | JK-3525 |
Driving system | stepping |
Table Dimension | 350×250mm |
Feeding Height | 70mm/120mm |
Idle Speed | 4m/min |
Processing Speed | 4m/min |
Spindle | 800W～2.2KW Variable Frequency water-cooling |
Rotary Spped | 6000～24000rpm/min |
Working Voltage | AC220V/50Hz |
Tools and Blades | ￠3.175/4/6mm |
File Format | G code/HPGL |
Positioning Precision | ±0.03mm |
Repositioning Precision | ±0.02mm |
Control System | Nc Studio |
Alluminium; Copper; Brass; Jade; Artcrafts; wooden products; advertisings; labels; signs; badges; seals; crystal characters; shoe moulds, panels; gilt plates; PCB plates; indentation plates; metal and plastic plates,
Features：
◆Intergrated casting body features rigidity and non-deformation
◆Employing imported high precision rolling ballscrew processes high accuracy and speed
◆Constant power V/F water-cooling spindle features good performance, long torque and high efficiency
◆Intellective control of the processing speed, idle speed and down speed improves processing effiency and quality, and also extends the lifetime of tools
◆Recovery functions by remembering the working cordinate and continue to work with it after cutting of power, or braking of tools,
◆Compatible with any advanced CAM software, such as Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam and so on
Models | JK-3525 |
Driving system | stepping |
Table Dimension | 350×250mm |
Feeding Height | 70mm/120mm |
Idle Speed | 4m/min |
Processing Speed | 4m/min |
Spindle | 800W～2.2KW Variable Frequency water-cooling |
Rotary Spped | 6000～24000rpm/min |
Working Voltage | AC220V/50Hz |
Tools and Blades | ￠3.175/4/6mm |
File Format | G code/HPGL |
Positioning Precision | ±0.03mm |
Repositioning Precision | ±0.02mm |
Control System | Nc Studio |
Alluminium; Copper; Brass; Jade; Artcrafts; wooden products; advertisings; labels; signs; badges; seals; crystal characters; shoe moulds, panels; gilt plates; PCB plates; indentation plates; metal and plastic plates,
