Features:
◆Adopting imported rolling ball screw, high precision rotary with large Dia. for different size of cylinder materials.
◆High accuracy driving system
◆Adopting cnc control, fully utilizing drving system to make high production,synchronization of line and curve processing, curve more smooth
◆CNC control system with memory function, can continue to work after breaking of tools or power off
◆Software compatible:Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam etc.
|
| |
ZK-0210-6T
Kaxing
ZK-0210-6T
ZK-0210-6T
Features:
◆Adopting imported rolling ball screw, high precision rotary with large Dia. for different size of cylinder materials.
◆High accuracy driving system
◆Adopting cnc control, fully utilizing drving system to make high production,synchronization of line and curve processing, curve more smooth
◆CNC control system with memory function, can continue to work after breaking of tools or power off
◆Software compatible:Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam etc.
| 产品型号Model | ZK-0210-6T | |
| 行程 Work stroke | X≤200mm Y≤1000mm Z≤200mm | |
| 精度 Accuracy | 定位精度 Positioning accuracy | ±0.1mm |
| 重复定位精度 Repeatability positioning accuracy | ±0.05mm | |
| 结构 Strucure | 台面结构 Table strucure | 龙门移动 Moveable crossbeam |
| 传动方式 Transmissin way | X，Y向齿条传动；Z向丝杆传动 X,Y syncline rack and gear reducer drive，Z screw | |
| 速度 Speed | 最大空行速度 Max. ldle speed | 15000mm/min |
| 最大工作速度 Max. working speed | X/Y：10000mm/min；Z：1000mm/min | |
| 主轴 Spindle | 主轴功率 Spindle power | 2*3*3.2KW尚客水冷（四级电机/800HZ）SHANGKE Water cooled |
| 主轴转速 Spindle speed | 6000~24000RPM | |
| 刀库 Tools | 四轴圆雕 4 axis circular engravure | |
| 工作电压 Working voltage | AC380/50Hz | |
| 运行指令 File format | G代码/NC代码/ENG代码 G/NC/ENG code | |
| 操作系统 Control system | 四轴四联动系统 4 axis control system | |
| 外形尺寸 Dimension | 2100mm*3100mm*1500mm | |

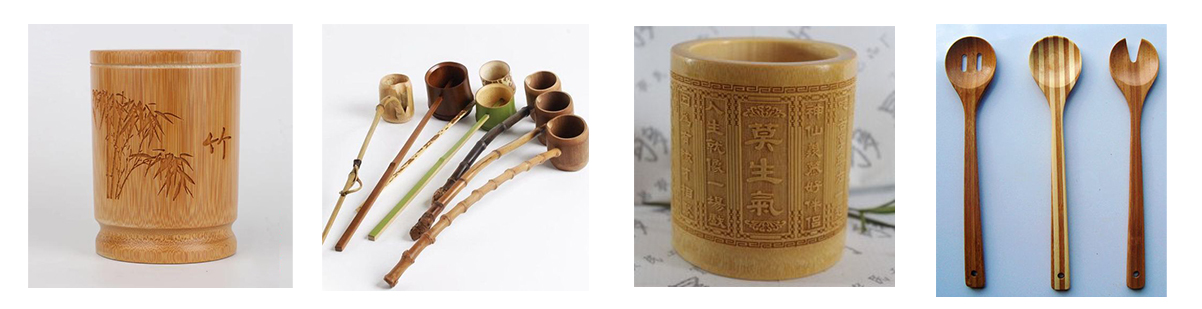

Bamboo tableware,Bamboo artware and other bamboo products.
Features:
◆Adopting imported rolling ball screw, high precision rotary with large Dia. for different size of cylinder materials.
◆High accuracy driving system
◆Adopting cnc control, fully utilizing drving system to make high production,synchronization of line and curve processing, curve more smooth
◆CNC control system with memory function, can continue to work after breaking of tools or power off
◆Software compatible:Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam etc.
| 产品型号Model | ZK-0210-6T | |
| 行程 Work stroke | X≤200mm Y≤1000mm Z≤200mm | |
| 精度 Accuracy | 定位精度 Positioning accuracy | ±0.1mm |
| 重复定位精度 Repeatability positioning accuracy | ±0.05mm | |
| 结构 Strucure | 台面结构 Table strucure | 龙门移动 Moveable crossbeam |
| 传动方式 Transmissin way | X，Y向齿条传动；Z向丝杆传动 X,Y syncline rack and gear reducer drive，Z screw | |
| 速度 Speed | 最大空行速度 Max. ldle speed | 15000mm/min |
| 最大工作速度 Max. working speed | X/Y：10000mm/min；Z：1000mm/min | |
| 主轴 Spindle | 主轴功率 Spindle power | 2*3*3.2KW尚客水冷（四级电机/800HZ）SHANGKE Water cooled |
| 主轴转速 Spindle speed | 6000~24000RPM | |
| 刀库 Tools | 四轴圆雕 4 axis circular engravure | |
| 工作电压 Working voltage | AC380/50Hz | |
| 运行指令 File format | G代码/NC代码/ENG代码 G/NC/ENG code | |
| 操作系统 Control system | 四轴四联动系统 4 axis control system | |
| 外形尺寸 Dimension | 2100mm*3100mm*1500mm | |
Bamboo tableware,Bamboo artware and other bamboo products.
