ATC-1325-8T
Kaxing
ATC-1325-8T
◆Stable structure by heavy steel welding, five axis milling machine processing, ensure machine accuracy is higher ,
Tempering aging treatment, firm without deformation.
◆Taiwan linear guide rail, ball screw, heavy load bearing force, precise cutting;
◆Leadshine customized driving system,High torque and complete safety system;
◆ATC tool system with 8 pcs tools, available for various complicated process requirements and greatly improve production efficiency.
◆high power vaccum table with 6 work areas which can be processed in single area or simultaneously, improve production efficiency.
◆Compatible with any advanced CAM/CAD software :such as Type3/Artcam/CAXA/UG/Pro-E/Mastercam etc.
| 产品型号Model | ATC-1325-8T | |
| 行程 Work stroke | X1300mm Y2500mm Z200mm | |
| 精度 Accuracy | 定位精度 Positioning accuracy | ±0.1mm |
| 重复定位精度 Repeatability positioning accuracy | ±0.05mm | |
| 结构 Strucure | 台面 Table | 6区真空吸附 vaccum table 6 areas |
| 传动方式 Transmissin way | X，Y向斜齿条加减速机传动；Z向丝杆传动 XY gear rack，Z screw | |
| 速度 Speed | 最大空行速度 Max. ldle speed | 30000mm/min |
| 最大工作速度 Max. working speed | X/Y：20000mm/min；Z：5000mm/min | |
| 主轴 Spindle | 主轴功率 Spindle power | 定制6KW自动换刀风冷主轴 customized 6Kw automatic tool change air cooled spindle |
| 主轴转速 Spindle speed | 0-18000RPM | |
| 雕刻刀具 Tool | 排式8把（刀径自选）Row type 8 pcs | |
| 换刀时间 Tool change time | 5S | |
| 运行模式 Driving system | 伺服驱动 Leadshine sero | |
| 工作电压 Working voltage | AC380/50Hz | |
| 运行指令 File format | G代码/NC代码 G/NC code | |
| 操作系统 Control system | 维宏系统 Nc studio | |
| 吸附功率 Vaccum power | 7.5KW | |
| 吸尘功率 Dust collector power | 3.0KW | |
| 外形尺寸 Dimension | 2500mm*3400mm*1800mm | |

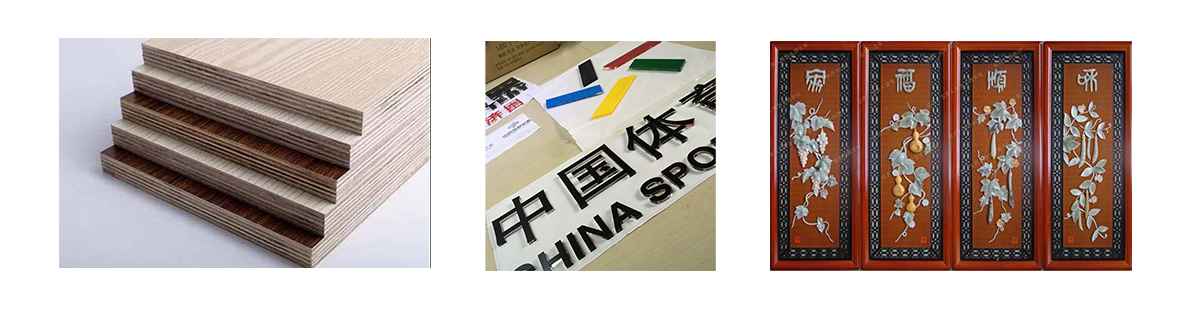

Wood doors and furniture decoration industry: solid wood and compound doors, cabinet doors, large-area plate plane carving, solid wood carving and milling, board furniture carving, antique mahogany furniture carving, solid wood art mural carving and other industries;
