Copper And Aluminum Sheet Engraving CNC(MT-2030)

Features:

◆Heavy-duty all-steel welding structure, five-sided gantry milling machine processing, the machine has higher precision and more stability; tempering aging treatment, firmness and no deformation

◆Three-axis adopts Taiwan linear guide, X, Y, Z axis ball screw transmission, large bearing capacity, high precision, stable movement; accurate cutting operation.

◆Nc studio integrated control system, stable operation, The program has a protection function to prevent virus intrusion.7.5KW high-speed frequency conversion water-cooled spindle, large torque, high processing efficiency;AC servo motor, fast speed, high positioning accuracy, large torque, and complete safety protection

◆Heavy load bearing, good stability, not easy deformed in long-term using.

◆Open software interface, Compatible with a variety of CAD/CAM design software such as type3/artcam/castmate/UCANCAM and etc.ensuring Design barrier-free.

Availability:

  • MT-2030

  • Kaxing

  • MT-2030

  • MT-2030

Product Description


Features:

◆Heavy-duty all-steel welding structure, five-sided gantry milling machine processing, the machine has higher precision and more stability; tempering aging treatment, firmness and no deformation

◆Three-axis adopts Taiwan linear guide, X, Y, Z axis ball screw transmission, large bearing capacity, high precision, stable movement; accurate cutting operation.

◆Nc studio integrated control system, stable operation, The program has a protection function to prevent virus intrusion.7.5KW high-speed frequency conversion water-cooled spindle, large torque, high processing efficiency;AC servo motor, fast speed, high positioning accuracy, large torque, and complete safety protection

◆Heavy load bearing, good stability, not easy deformed in long-term using.

◆Open software interface, Compatible with a variety of CAD/CAM design software such as type3/artcam/castmate/UCANCAM and etc.ensuring Design barrier-free.


Product Paramenters


铜铝精雕机Copper And Aluminum Sheet Engraving CNC 产品型号 MT-2030 MT-1630
行程 Work stroke X2000mm Y3000mm Z235mm X1600mm Y3000mm Z235mm
定位精度 Positioning accuracy ±0.05mm
重复定位精度 Repeatability positioning accuracy ±0.02mm
台面结构 Table strucure 铝台面 Aluminum
X、Y、Z向传动结构 Transmission 丝杆传动 Screw drive
最大空行速度 Max. ldle speed 20m/min
最大工作速度 Max. working speed 10m/min
主轴电机功率 Spindle power 7.5KW
主轴电机转速 Spindle speed 6000~24000RPM
运行模式 Driving system 交流伺服 AC servo
工作电压 Working voltage AC380V
运行指令 File format G代码/F、S兼容  G code/F、S compatible
操作系统 Control system 维宏系统 Nc studio
Application

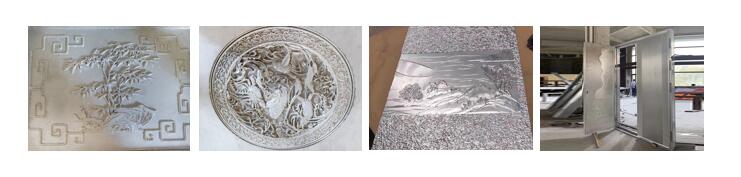

Aluminum sheet、Copper sheet、Aluminium-plastic panel、Aluminum Honeycomb Panel、Aluminium profile and other metal materials engraving  and cutting ;Using on decoration, projects, aluminum doors and windows, copper doors and others.

tonglvjing
