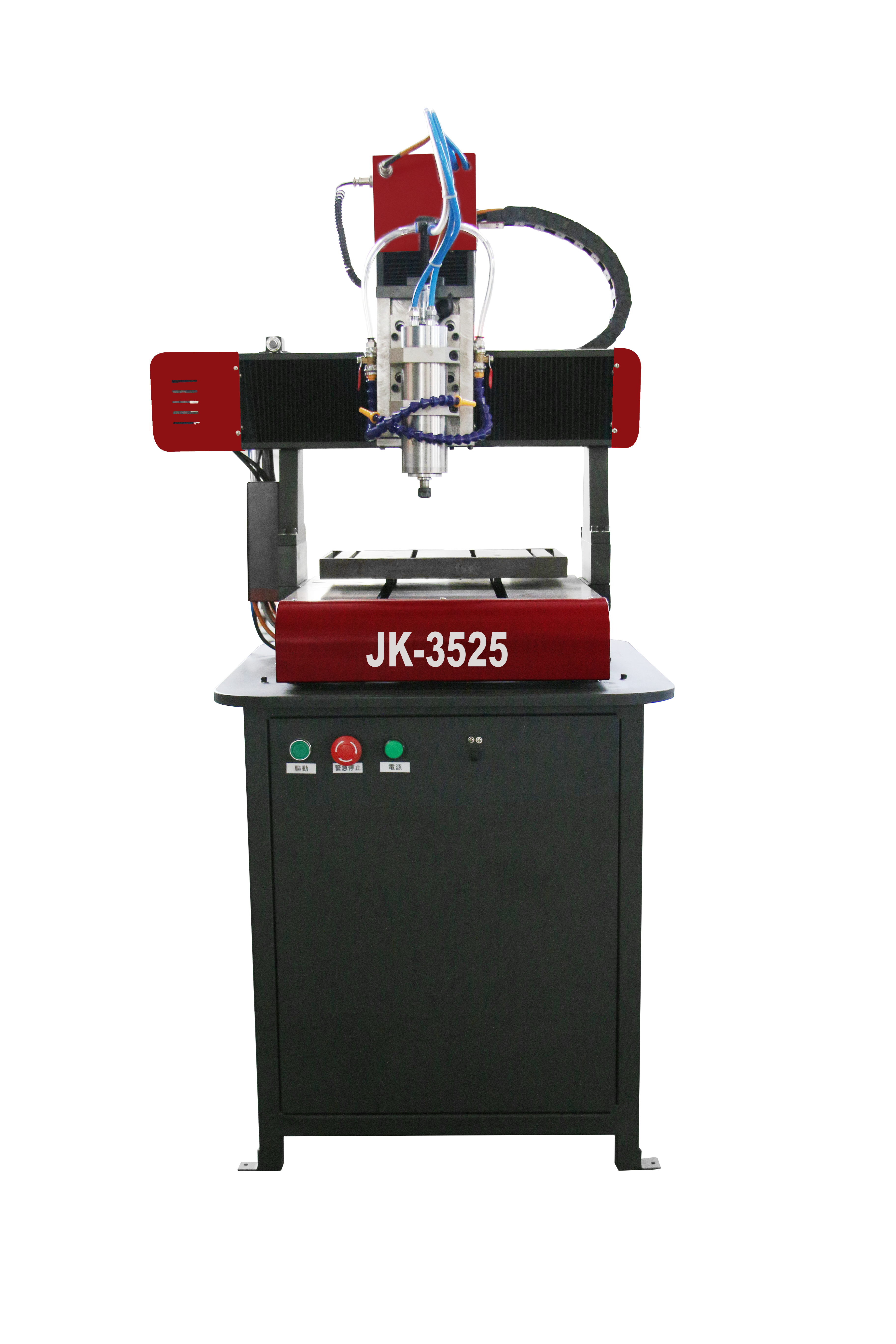

Mini Engraving Machine(JK-3525/4040/3525B)

Features

◆Intergrated casting body features rigidity and non-deformation

◆Employing imported high precision rolling ballscrew processes high accuracy and speed

◆Constant power V/F water-cooling spindle features good performance, long torque and high efficiency

◆Intellective control of the processing speed, idle speed and down speed improves processing effiency and quality, and also extends the lifetime of tools

◆Recovery functions by remembering the working cordinate and continue to work with it after cutting of power, or braking of tools,

◆Compatible with any advanced CAM software, such as Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam and so on

Availability:

  • JK-3525/4040/3525B

  • Kaxing

  • JK-3525/4040/3525B

  • JK-3525/4040/3525B

Product Description

Features

◆Intergrated casting body features rigidity and non-deformation

◆Employing imported high precision rolling ballscrew processes high accuracy and speed

◆Constant power V/F water-cooling spindle features good performance, long torque and high efficiency

◆Intellective control of the processing speed, idle speed and down speed improves processing effiency and quality, and also extends the lifetime of tools

◆Recovery functions by remembering the working cordinate and continue to work with it after cutting of power, or braking of tools,

◆Compatible with any advanced CAM software, such as Type3/Artcam/CAXA/UG/Pro-E/Mastercam/Ucancam and so on

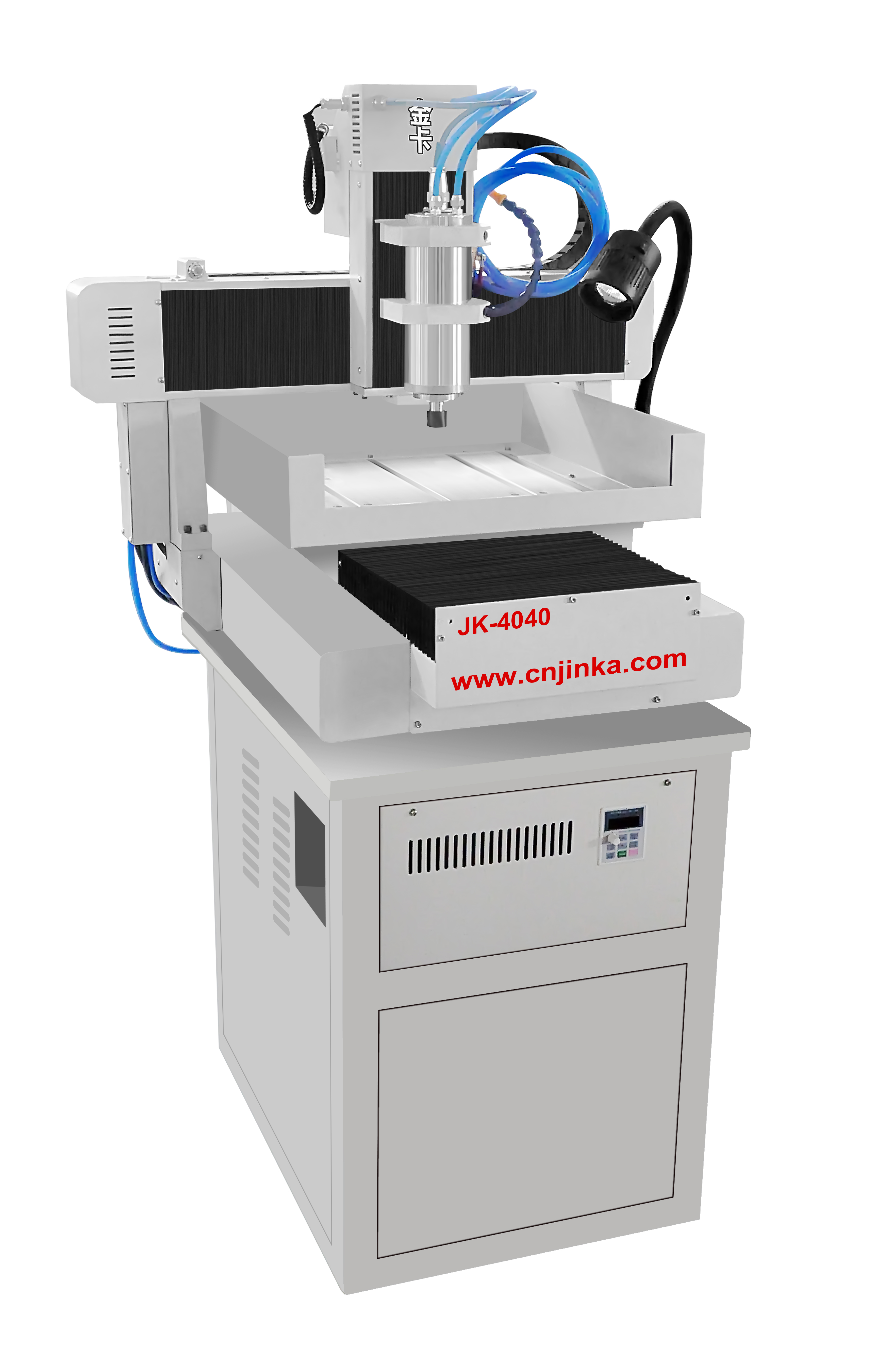

JK JK-4040-xinkuan-xiutu
Product Paramenters


产品型号 Model JK-3525 MD-4040 JK-3525B
驱动系统 Drive system 步进系统
平台尺寸 Table 350*250mm 400*400mm 350*250mm
进料高度 Feed height 70mm 85mm/120mm
空程速度 ldle speed 4m/min 6m/min 4m/min
加工速度 Processing speed 4m/min 6m/min 4m/min
主轴电机 Spindle 800W-2.2KW变频水冷主轴 800W-2.2KW Variable frequen water cooled spindle
主轴转速 Spindle speed 6000~24000RPM/min
工作电压 Working voltage AC220V/50Hz
雕刻刀具 Tool φ3.175/4/6mm
文件格式 File format G代码/HPGL G code/HPGH
定位精度 Positioning accuracy ±0.03mm
重复定位精度 Repeatability positioning accuracy ±0.02mm
控制系统 Control system 维宏系统 Nc studio
Application

Alluminium; Copper; Brass; Jade; Artcrafts; wooden products; advertisings; labels; signs; badges; seals; crystal characters; shoe moulds, panels; gilt plates; PCB plates; indentation plates; metal and plastic plates.

yushi

模板
