Plate Cutting Machine Series(KL-1325P-3P/4P)

Features:

The plate cutting machine improves the utilization of board; reduces labor and labor intensity; with running fast, increases economic efficiency greatly;

The machine adopts heavy-duty all steel frame structure, solid and non- deformation;

Excellent components: linear guide rail from Taiwan, X / Y axis with rack transmission,Z axis with imported screw drive features high stability, high wear resistance, high precision;

Adds the automatic feeding system, table positioning cylinder, manual auxiliary feeding, more convenient and more efficient;

Adopting powerful vacuum adsorption device, the table is divided into six independent areas, which can work synchronously or individually , more efficiently;

Software compatible: open software interface, compatible with various software (such as Qingdao Harson , Gloud, Hongguang, etc.).

Availability:

  • KL-1325P-3P/4P

  • Kaxing

  • KL-1325P-3P/4P

  • KL-1325P-3P/4P

Product Description

Features:

The plate cutting machine improves the utilization of board; reduces labor and labor intensity; with running fast, increases economic efficiency greatly;

The machine adopts heavy-duty all steel frame structure, solid and non- deformation;

Excellent components: linear guide rail from Taiwan, X / Y axis with rack transmission,Z axis with imported screw drive features high stability, high wear resistance, high precision;

Adds the automatic feeding system, table positioning cylinder, manual auxiliary feeding, more convenient and more efficient;

Adopting powerful vacuum adsorption device, the table is divided into six independent areas, which can work synchronously or individually , more efficiently;

Software compatible: open software interface, compatible with various software (such as Qingdao Harson , Gloud, Hongguang, etc.).

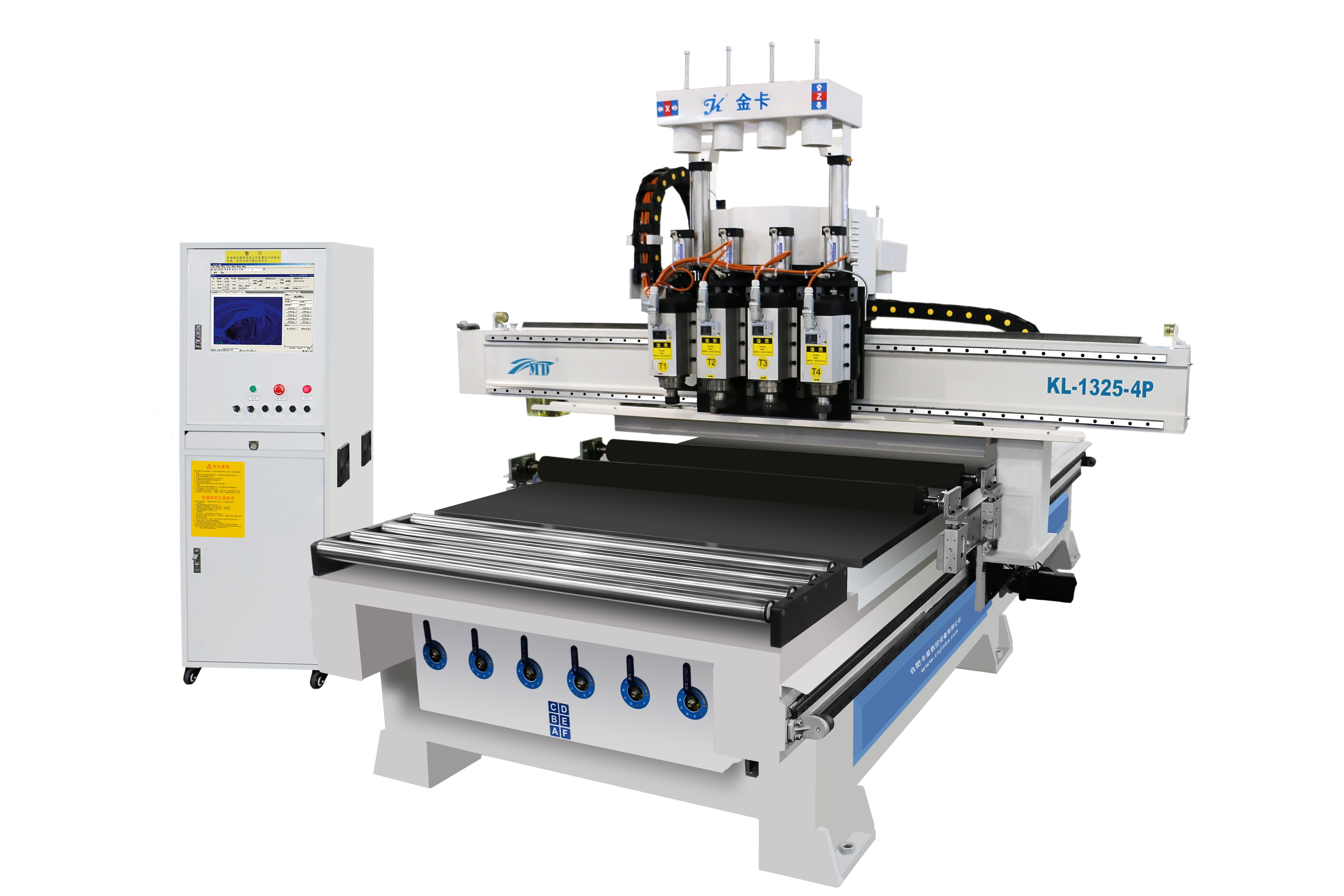

KL-1325-banshikailiaoji
Product Paramenters


产品型号 Model

KL-1325-3P KL-1325-4P
平台尺寸 Table X1300mm  Y2500mm
精度 Accuracy 定位精度 Positioning accuracy ±0.1mm
重复定位精度 Repeatability positioning accuracy ±0.05mm
结构 Strucure 台面 Table 6区真空吸附 vaccum table 6 areas
传动方式 Transmissin way X,Y向齿条传动;Z向丝杆传动  X,Y syncline rack and gear reducer drive,Z screw
速度 Speed 最大空行速度 Max. ldle speed 18000mm/min
最大工作速度 Max. working speed X/Y:15000mm/min;Z:5000mm/min
主轴 Spindle 主轴功率 Spindle power 6KW、4.5KW、3.5KW风冷主轴任意组合  air cooled spindle combination
主轴转速 Spindle speed 0-18000RPM
进料高度 Feed height 210mm
操作系统 Control system 维宏系统 Nc studio
外形尺寸 Dimension 3800mm*2650mm*2100mm
Application

Panel furniture, furniture decoration field, cabinets, wardrobes, large area board plane-carving , antique mahogany furniture;

Decoration field: acrylic, windows, aluminum panels, decorative materials, the medium board.
