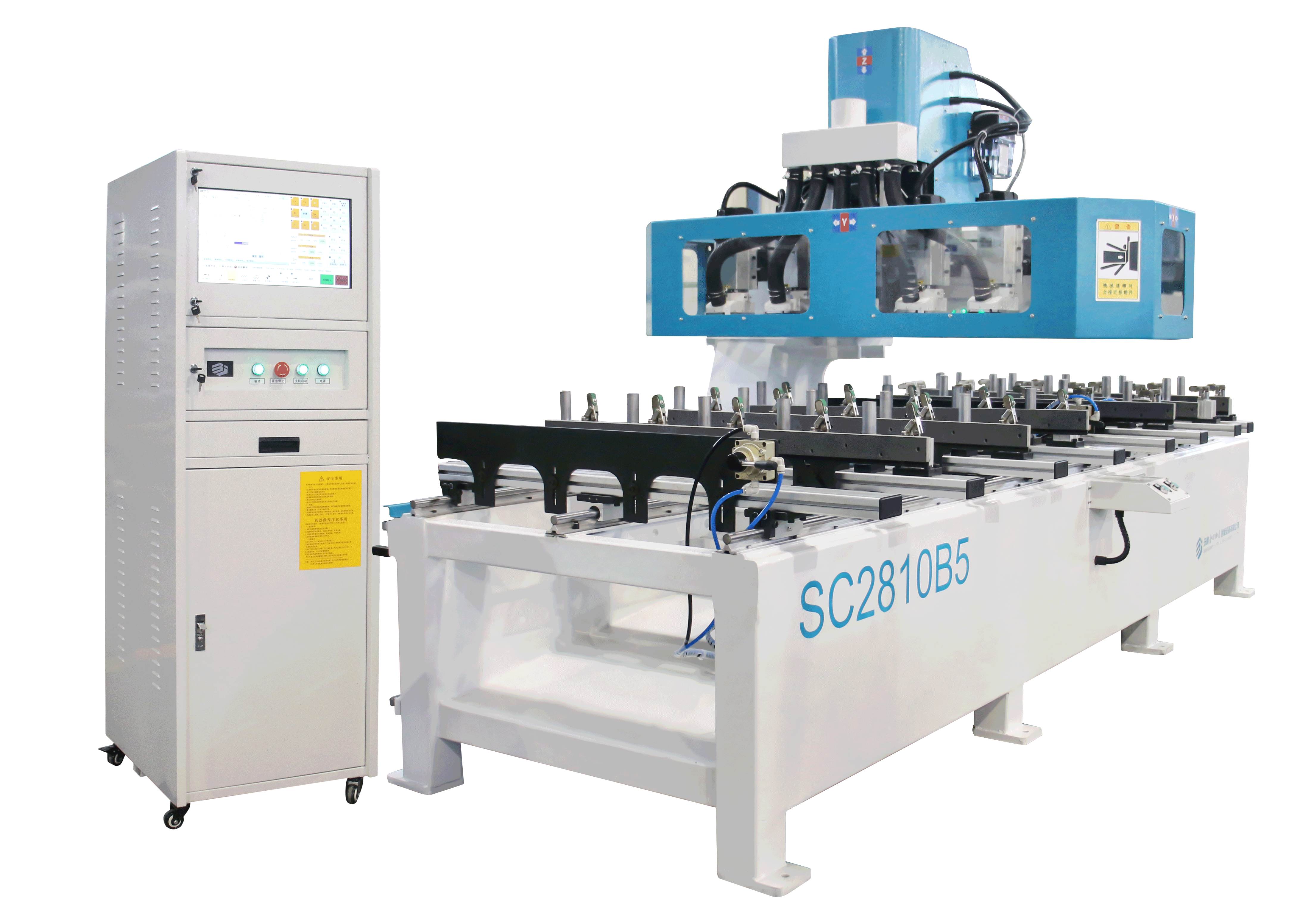

SC2810B5
Kaxing
SC2810B5
SC2810B5
◆ Multi-head and multi-position high-speed continuous milling is adopted. Regarding clamping process, a group of workpieces are processed while other workpieces are loaded, and uninterrupted production is greatly improved.
◆ Optional point-to-point programming mode input: humanized tool setting, automatic processing program generation without programming to point.
◆ CNC input and output,--group of workpieces--secondary positioning processing is completed, ensuring the high-quality and high-precision completion of the workpiece
◆ Optional advanced infrared grating protection saves potential safety hazards
| 产品型号Model | SC2810B5 |
| 最大加工长度 Max. processing length | 2800mm |
| 最大加工宽度 Max. processing width | 100mm |
| 最大加工高度 Max. processing height | 120mm |
| 主轴电机功率 Spindle power | HQD 3.5KW*5 |
| 主轴电机转速 Spindle speed | 0~18000RPM |
| 驱动电机 Drive motor | 创伟110B/CW 110B |
| 加工速度 Work speed | 无极调速/Stepless speed regulation |
| 工作气压 Work pressure | 7-8kg/m（0.7-0.8Mpa） |
| 控制系统 Control system | 维宏系统 Nc studio |
| 外形尺寸 Dimension | 3400*1700*2000mm |
Suitable for diversified tenon processing, through program editing and selection, can realize dozens of tenon processing, covering almost all types of traditional tenon-and-mortise structure in Chinese classical furniture; environmental protection, energy saving, low energy consumption.
◆ Multi-head and multi-position high-speed continuous milling is adopted. Regarding clamping process, a group of workpieces are processed while other workpieces are loaded, and uninterrupted production is greatly improved.
◆ Optional point-to-point programming mode input: humanized tool setting, automatic processing program generation without programming to point.
◆ CNC input and output,--group of workpieces--secondary positioning processing is completed, ensuring the high-quality and high-precision completion of the workpiece
◆ Optional advanced infrared grating protection saves potential safety hazards
| 产品型号Model | SC2810B5 |
| 最大加工长度 Max. processing length | 2800mm |
| 最大加工宽度 Max. processing width | 100mm |
| 最大加工高度 Max. processing height | 120mm |
| 主轴电机功率 Spindle power | HQD 3.5KW*5 |
| 主轴电机转速 Spindle speed | 0~18000RPM |
| 驱动电机 Drive motor | 创伟110B/CW 110B |
| 加工速度 Work speed | 无极调速/Stepless speed regulation |
| 工作气压 Work pressure | 7-8kg/m（0.7-0.8Mpa） |
| 控制系统 Control system | 维宏系统 Nc studio |
| 外形尺寸 Dimension | 3400*1700*2000mm |
Suitable for diversified tenon processing, through program editing and selection, can realize dozens of tenon processing, covering almost all types of traditional tenon-and-mortise structure in Chinese classical furniture; environmental protection, energy saving, low energy consumption.
