ATC-1328D-T3/T4
Kaxing
ATC-1328D-T3/T4
ATC-1328D-T3/T4
Features：
◆The Multi-processes engraving machine is easier to operate than the machine with single spindle, and saves tools changing time. By holding three tools, this machine can finish the processes of cutting and hollowing-out on wooden door at one time without changing tools. Consequently, it makes processing easier and greatly improves working effiency.
◆Multi procedures system as a option for cost performance, make the proicessing of complicated crafts much easier and more effiently.
◆Stable structure: adopting heavy type all steel structure welded body features rigidity and non-deformation.
◆Excellent components: Taiwan Syntec control system; gear rack transmission for X, Y axis features high strength and absrasive resistance; imported rolling ball screw transmission for Z axis features heave loading and accurate position.
◆Yaskawa servo system with big torque and safety system
◆Adopting powerful vacuum absorption system, the table is devided into six independent areas which can work synchronically.
◆Compatible with any advanced software such as Type3/Artcam/caxa/UG/Pro-E/Mastercam/Ucancam and so on.

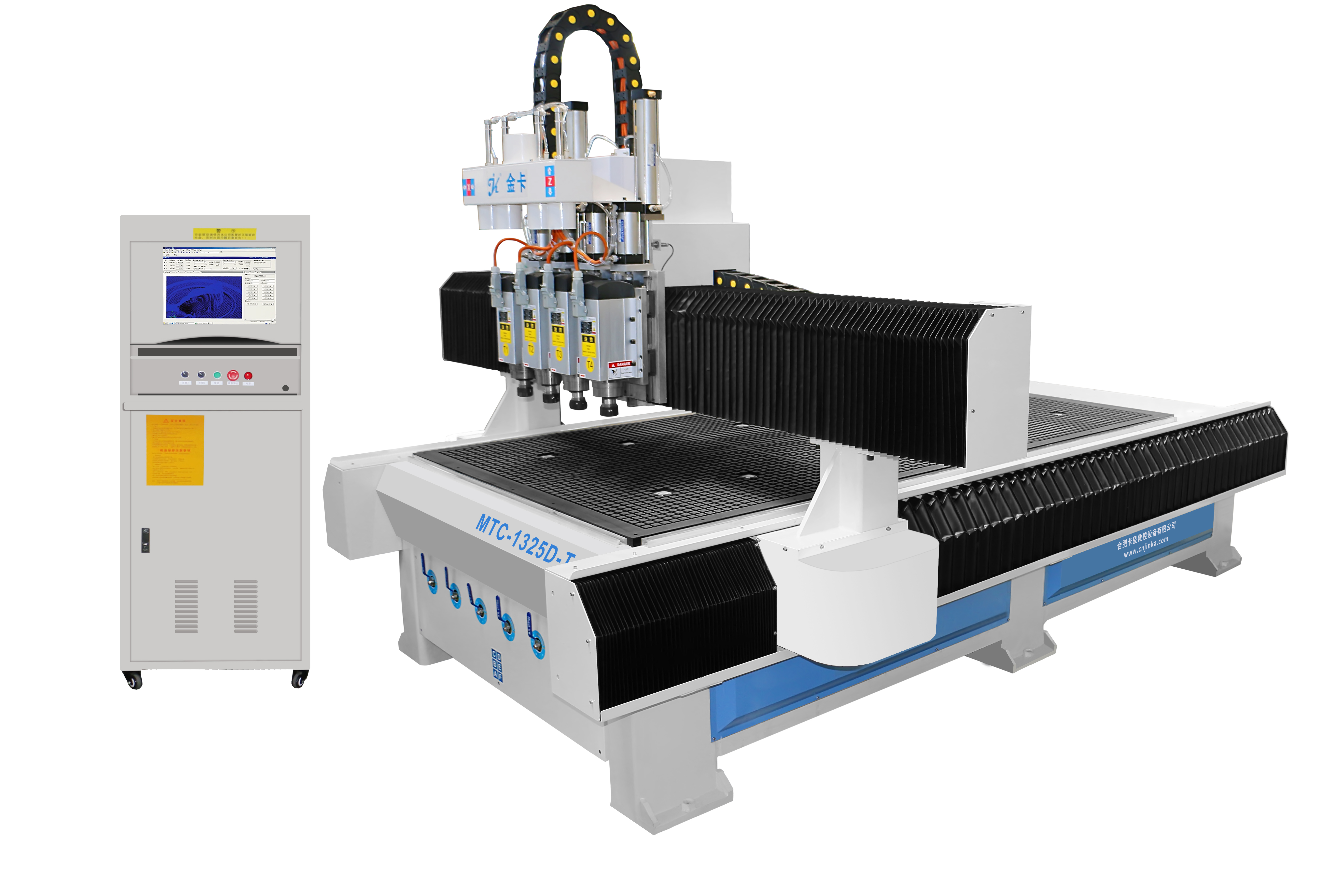

| 产品型号Model | MTC-1325D-T3 | MTC-1325D-T4 | |
| 平台尺寸 Table | X1300mm Y2500mm | ||
| 精度 Accuracy | 定位精度 Positioning accuracy | ±0.1mm | |
| 重复定位精度 Repeatability positioning accuracy | ±0.05mm | ||
| 结构 Strucure | 台面 Table | 6区真空吸附 vaccum table 6 areas | |
| 传动方式 Transmissin way | X，Y向齿条传动；Z向丝杆传动 X,Ysyncline rack and gear reducer drive，Z to screw drive | ||
| 速度 Speed | 最大空行速度 Max. ldle speed | 18000mm/min | |
| 最大工作速度 Max. working speed | X/Y：15000mm/min；Z：6000mm/min | ||
| 主轴 Spindle | 主轴功率 Spindle power | 6KW、4.5KW、3.5KW风冷主轴任意组合 air cooled spindle combination | |
| 主轴转速 Spindle speed | 0-18000RPM | ||
| 进料高度 Feed height | 210mm | ||
| 操作系统 Control system | 维宏系统 Nc studio | ||
| 外形尺寸 Dimension | 3500mm*2300mm*1700mm | ||

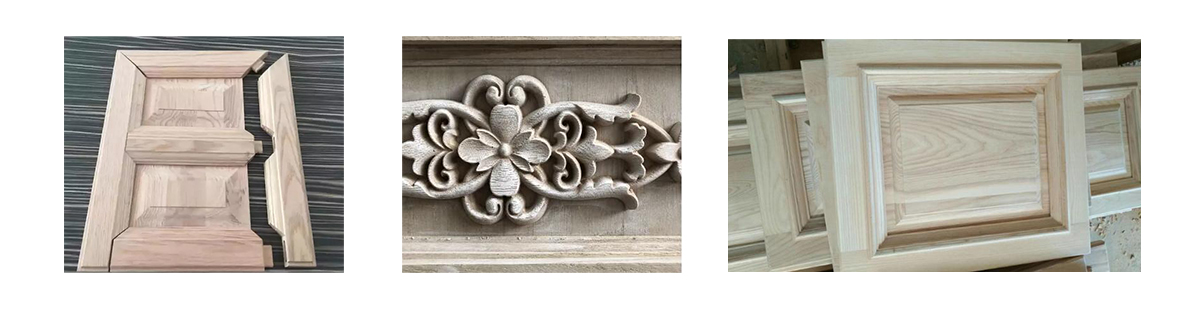

◆Wooden Doors and Furnitures:CLassical mahogany furniture; European style furniture; antique reproduction furniture carving; screen hollowing-cutout;solid wood door; artcraft wooden door; free painting door; artcraft window; tables,
◆Wooden crafts: Clock frame; album frame; thin aluminium plate crafts carving and holling; electric appliance cabinet panel; sports equipment;
◆Advertising and Decoration:Arcrylic; cupboard panel; decoration material
◆Musical Instruments: three dimension curve surface carving; outline cutting, such as panel for violin
◆EVA: Carving and hollowing of EVA material packing tools; medical apparatus, electronical products
Features：
◆The Multi-processes engraving machine is easier to operate than the machine with single spindle, and saves tools changing time. By holding three tools, this machine can finish the processes of cutting and hollowing-out on wooden door at one time without changing tools. Consequently, it makes processing easier and greatly improves working effiency.
◆Multi procedures system as a option for cost performance, make the proicessing of complicated crafts much easier and more effiently.
◆Stable structure: adopting heavy type all steel structure welded body features rigidity and non-deformation.
◆Excellent components: Taiwan Syntec control system; gear rack transmission for X, Y axis features high strength and absrasive resistance; imported rolling ball screw transmission for Z axis features heave loading and accurate position.
◆Yaskawa servo system with big torque and safety system
◆Adopting powerful vacuum absorption system, the table is devided into six independent areas which can work synchronically.
◆Compatible with any advanced software such as Type3/Artcam/caxa/UG/Pro-E/Mastercam/Ucancam and so on.
| 产品型号Model | MTC-1325D-T3 | MTC-1325D-T4 | |
| 平台尺寸 Table | X1300mm Y2500mm | ||
| 精度 Accuracy | 定位精度 Positioning accuracy | ±0.1mm | |
| 重复定位精度 Repeatability positioning accuracy | ±0.05mm | ||
| 结构 Strucure | 台面 Table | 6区真空吸附 vaccum table 6 areas | |
| 传动方式 Transmissin way | X，Y向齿条传动；Z向丝杆传动 X,Ysyncline rack and gear reducer drive，Z to screw drive | ||
| 速度 Speed | 最大空行速度 Max. ldle speed | 18000mm/min | |
| 最大工作速度 Max. working speed | X/Y：15000mm/min；Z：6000mm/min | ||
| 主轴 Spindle | 主轴功率 Spindle power | 6KW、4.5KW、3.5KW风冷主轴任意组合 air cooled spindle combination | |
| 主轴转速 Spindle speed | 0-18000RPM | ||
| 进料高度 Feed height | 210mm | ||
| 操作系统 Control system | 维宏系统 Nc studio | ||
| 外形尺寸 Dimension | 3500mm*2300mm*1700mm | ||
◆Wooden Doors and Furnitures:CLassical mahogany furniture; European style furniture; antique reproduction furniture carving; screen hollowing-cutout;solid wood door; artcraft wooden door; free painting door; artcraft window; tables,
◆Wooden crafts: Clock frame; album frame; thin aluminium plate crafts carving and holling; electric appliance cabinet panel; sports equipment;
◆Advertising and Decoration:Arcrylic; cupboard panel; decoration material
◆Musical Instruments: three dimension curve surface carving; outline cutting, such as panel for violin
◆EVA: Carving and hollowing of EVA material packing tools; medical apparatus, electronical products
