Features:
◆Adopting imported linear guide rail, large loading ,running smoothly, high accuracy;
◆X / Y axis with rack transmission,Z axis with screw drive, high precision, high wear resistance;
◆ Widened Z-axis, the new gantry structure; X/Y-axis with imported 25 rails, Z-axis with imported 30 rails; to ensure the rigidity of the machine, more stably, better processing effect, especially suitable for large width embossing machines, has been widely adopted by the market;
◆The perfect automatic oiling system, saves maintenance time and greatly extends the lifetime of the rail ;
◆Adopting domestic famous constant power water-cooled frequency conversion spindle and high-performance inverter, perfect performance, large torque, high efficiency;
◆ Adopting professional drivers and motors, Y-axis with dual motor drive, faster, more stable;
◆Software compatible: Compatible with any other advanced software of CAM in the world: Type3/Artcam/Castmate/Wentai/Pro-E/CAXA/Artcut/UG/JD/ and etc.
Availability: | |
---|---|
| |

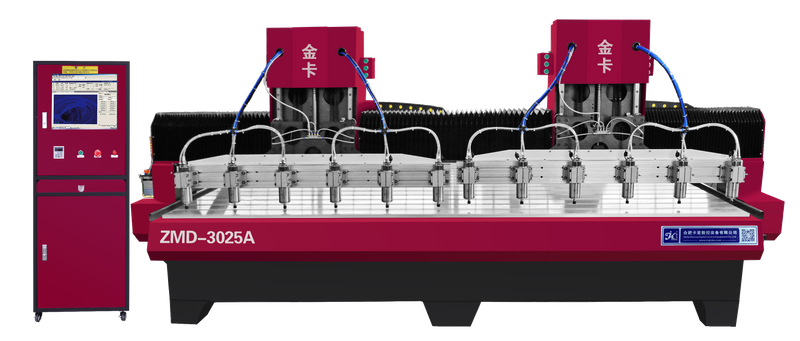

ZMD-1825A/2515A/3025A
JINKA
ZMD-1825A/2515A/3025A
ZMD-1825A/2515A/3025A
Features:
◆Adopting imported linear guide rail, large loading ,running smoothly, high accuracy;
◆X / Y axis with rack transmission,Z axis with screw drive, high precision, high wear resistance;
◆ Widened Z-axis, the new gantry structure; X/Y-axis with imported 25 rails, Z-axis with imported 30 rails; to ensure the rigidity of the machine, more stably, better processing effect, especially suitable for large width embossing machines, has been widely adopted by the market;
◆The perfect automatic oiling system, saves maintenance time and greatly extends the lifetime of the rail ;
◆Adopting domestic famous constant power water-cooled frequency conversion spindle and high-performance inverter, perfect performance, large torque, high efficiency;
◆ Adopting professional drivers and motors, Y-axis with dual motor drive, faster, more stable;
◆Software compatible: Compatible with any other advanced software of CAM in the world: Type3/Artcam/Castmate/Wentai/Pro-E/CAXA/Artcut/UG/JD/ and etc.
产品型号Model | ZMD-1825A | ZMD-2515A | ZMD-3025A |
平台尺寸 Table | 1800*2500mm | 2500*1500mm | 3000*2500mm |
进料高度 Feed height | 180mm | 230mm | 230mm |
最大空行速度 Max. ldle speed | 20m/min | ||
最大工作速度 Max. working speed | 10m/min | ||
主轴功率 Spindle power | 800W-2.2KW变频水冷主轴 800W-2.2KW Variable frequen water cooled spindle | ||
主轴转速 Spindle speed | 6000~24000RPM | ||
工作电压 Working voltage | AC220V/50Hz或AC380/50Hz | ||
雕刻刀具 Tool | φ3.175/4/6/12.7mm | ||
文件格式 File format | G代码/HPGL G code/HPGH | ||
定位精度 Positioning accuracy | ±0.1mm | ||
重复定位精度 Repeatability positioning accuracy | ±0.05mm | ||
控制系统 Control system | 维宏系统 Nc studio |
Mahogany antique furniture, white wood European furniture, antique furniture, screen hollow, solid wood doors, wooden doors, paint-free doors, cabinet doors, craft fan windows, all kinds of tables, sofas, panel furniture, advertising signs, logo production, acrylic cutting , plastic light boxes, curtain wall production, aluminum and other processing, copper, composited sheet and other non-ferrous metal mold processing.
