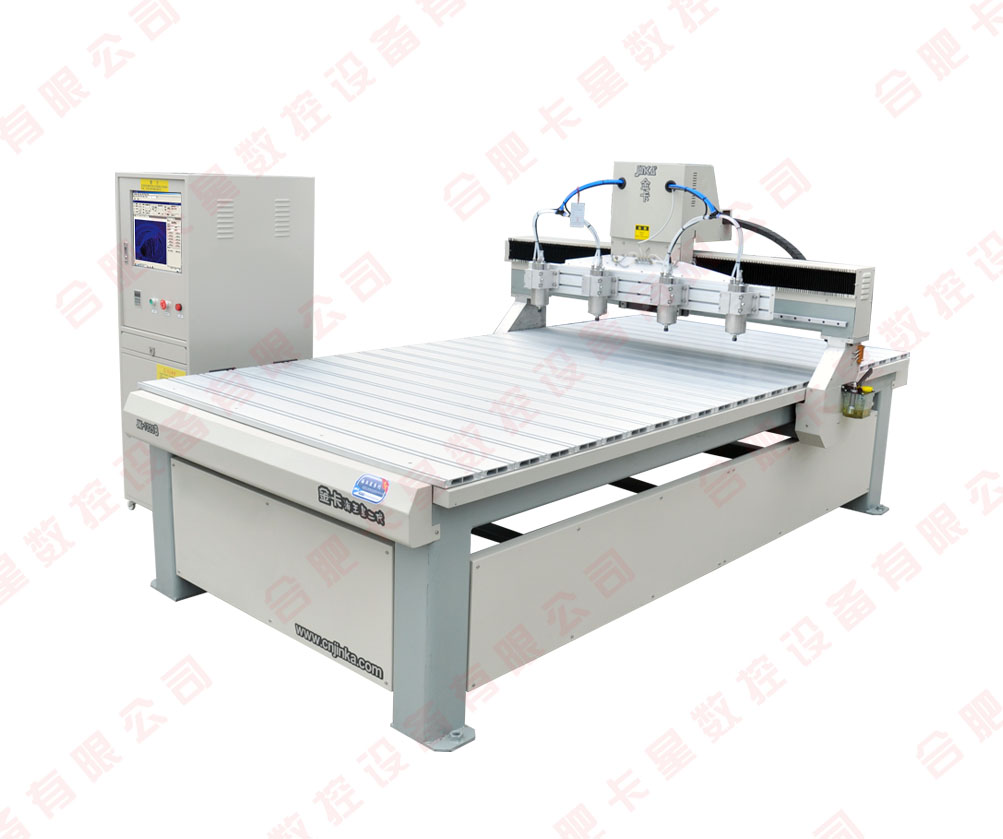

JK-1325B second generation

  • hw02

Features:

Aging treatment on the bed, strong and not deformed, durable;

◆ Using imported high-precision ball screw transmission, high accuracy and fast speed;

◆ Adopt constant power water-cooled frequency conversion spindle, with good performance, large torque and high efficiency;

◆ The system intelligently controls the processing speed, idling speed and cutting speed to improve processing efficiency, extend tool life and increase yield;

◆ Breakpoint memory is adopted to ensure that processing can be continued in the event of an accident (knife break, power failure) or the next day;

◆ Compatible with any advanced CAM software in the world:Type3 /Artcam/ CAXA / UG / Pro-E /Mastercam/ JD /Wentai et al.

Technical Parameters:

Product number

JK-1325B second generation
Platform size 1300 × 2500mm
Feed height 180mm
Idling speed 15m / min
Processing speed 10m / min
Spindle power 800W ~ 3.0KW frequency conversion water-cooled motor
Spindle speed 6000~24000 rpm / min
Operating Voltage AC220V / 50Hz or AC380V / 50Hz
Carving tool ¢ 3.175 / 4/6 / 12.7mm
file format G code / HPGL
positioning accuracy ± 0.03mm
Repeatability ± 0.02mm
Control System Nc studio system

Scope of application:

Classical mahogany furniture, European-style furniture, antique vintage furniture, cabinet doors, table tennis rackets, Buddhist altars, birthday boxes, bamboo and wooden crafts, photo frames, craft gifts, toy gifts, architectural models, decoration industry, advertising signs, signs, crystal characters, Blister light boxes, electrical equipment panels, moon cake molds and other processing.
